MC-PK10-C
Base product: MC-PK-SERIES

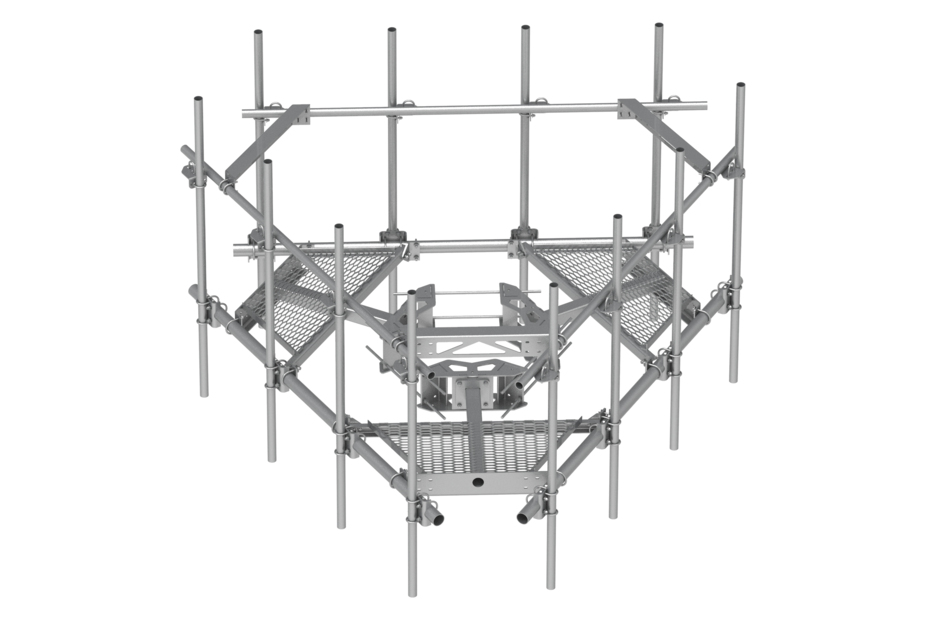

Low-Profile Co-location Platform Kit, 10.5 ft face for 12 in to 50 in OD Monopoles, includes (12) 2 3/8" OD x 96" Antenna Pipes & Top Support Rail Kit
Specifications
Product classification
| Product Type | Monopole platform kit |
| Ordering Note | NSTD445 Compliant |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 3.200 m | 10.5 ft |
| Platform Width | 3200.400 mm | 126 in |
| Width | 3200.400 mm | 126 in |
| Face Support Pipe Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 1270.000 mm | 50 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
| Stand-off Distance | 914.4 mm | 36 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Plain end pipes (12) | Platform | Rail | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 718.037 kg | 1583 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Monopole platform kit |
| Ordering Note | NSTD445 Compliant |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 12 |
| Sectors, quantity | 3 |
Dimensions
| Height | 2438.400 mm | 96 in |
| Face Width | 3.200 m | 10.5 ft |
| Platform Width | 3200.400 mm | 126 in |
| Width | 3200.400 mm | 126 in |
| Face Support Pipe Diameter | 88.900 mm | 3.5 in |
| Mounting Diameter, maximum | 1270.000 mm | 50 in |
| Mounting Diameter, minimum | 304.800 mm | 12 in |
| Pipe Outer Diameter | 60.325 mm | 2.375 in |
| Stand-off Distance | 914.4 mm | 36 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Plain end pipes (12) | Platform | Rail | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 718.037 kg | 1583 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
