MC-SA18-B
Base product: MOUNT-ACCESSORIES

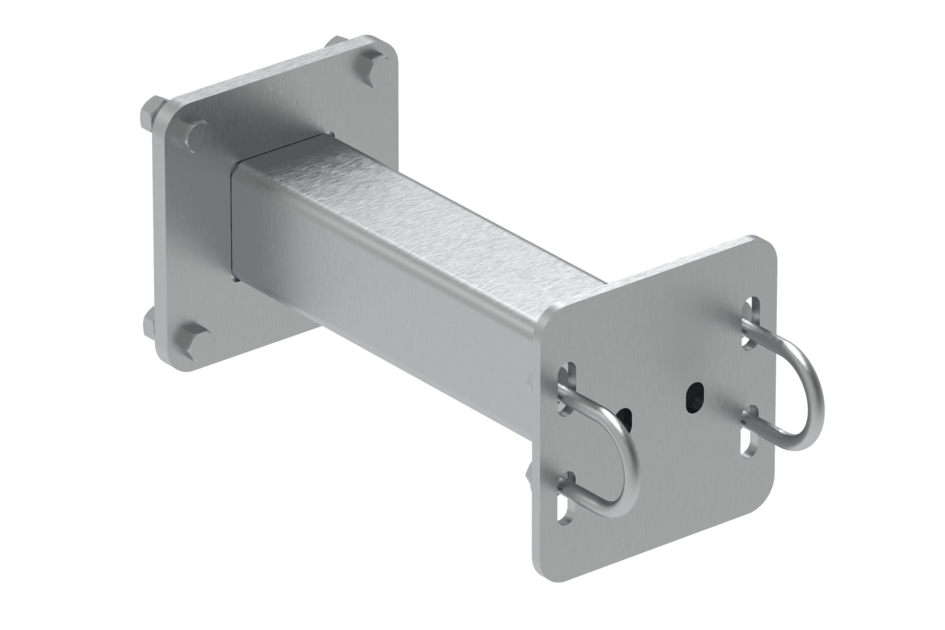

Stand-off Arm with U-bolts, 18 in
Specifications
Product classification
| Product Type | Support arms for ring mount |
General specifications
| Mounting | Ring mount |
| Pipe, quantity | 0 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 254 mm | 10 in |
| Length | 457.2 mm | 18 in |
| Stand-off Distance | 457.2 mm | 18 in |

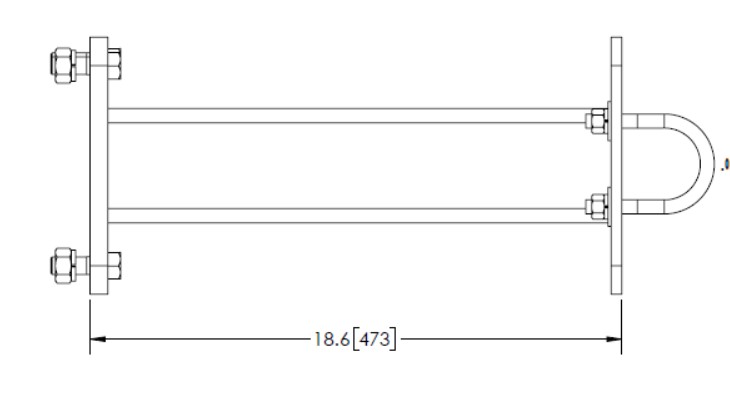

Outline drawing
| Click on image to enlarge. | |
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Criteria | One 72 in x 8 in panel antenna per sector |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Hardware | Stand-off arms | U-bolts |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Support arms for ring mount |
General specifications
| Mounting | Ring mount |
| Pipe, quantity | 0 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 254 mm | 10 in |
| Length | 457.2 mm | 18 in |
| Stand-off Distance | 457.2 mm | 18 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Criteria | One 72 in x 8 in panel antenna per sector |
| Wind Rating Test Method | TIA/EIA-222-G |
Packaging and weights
| Included | Hardware | Stand-off arms | U-bolts |
| Packaging quantity | 1 |
| Click on image to enlarge. | |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
