MT-195-8
Base product: MOUNT-ACCESSORIES

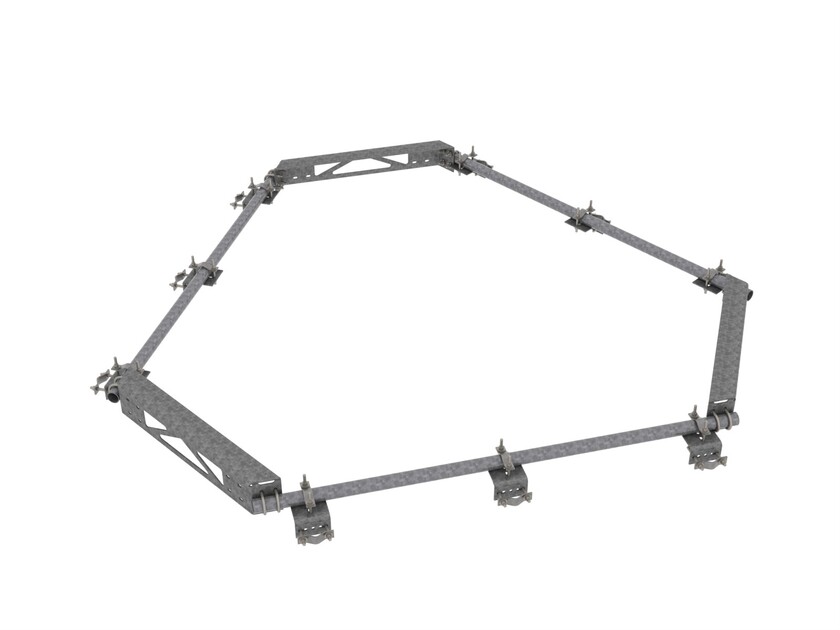

Top Rail Kit for MC-PK8-B, 8ft face
Specifications
Product classification
| Product Type | Co-location platform |
General specifications
| Mounting | Three sector monopole platform, 8 ft face |
| Sectors, quantity | 3 |
Dimensions
| Height | 101.6 mm | 4 in |
| Face Width | 2.438 m | 8 ft |
| Platform Width | 2438.4 mm | 96 in |
| Width | 2438.4 mm | 96 in |
| Length | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Corner clips | Crossover angles | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 82 lb | 180.779 lb |
Product classification
| Product Type | Co-location platform |
General specifications
| Mounting | Three sector monopole platform, 8 ft face |
| Sectors, quantity | 3 |
Dimensions
| Height | 101.6 mm | 4 in |
| Face Width | 2.438 m | 8 ft |
| Platform Width | 2438.4 mm | 96 in |
| Width | 2438.4 mm | 96 in |
| Length | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Corner clips | Crossover angles | Hardware | Pipe |
| Packaging quantity | 1 |
| Weight, net | 82 lb | 180.779 lb |
