MTC3946HD
Base product: MC-HP-SERIES

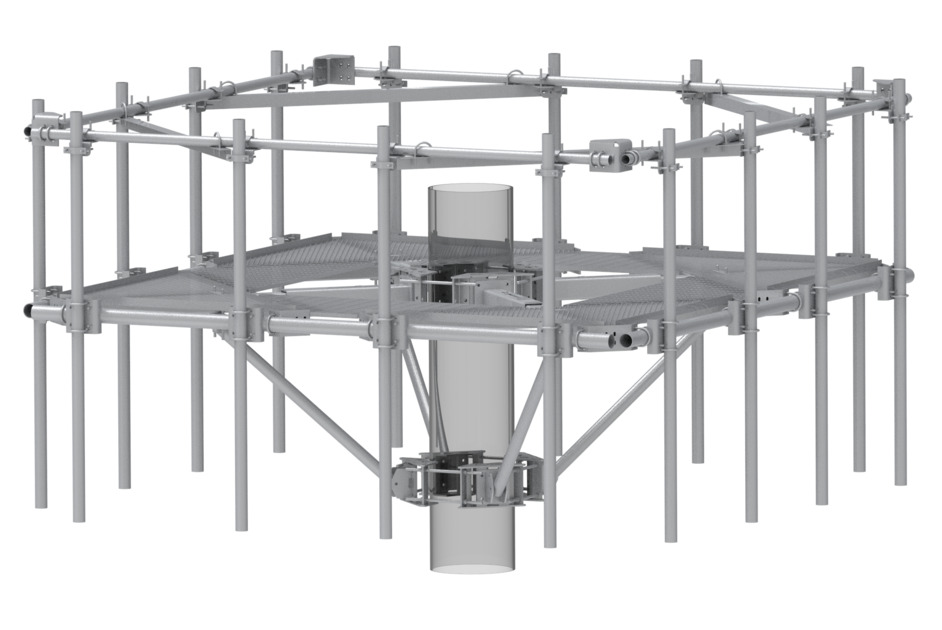

4-Sector Monopole Co-location Platform Kit, 10 in to 30 in OD, 12 ft 6 in face, includes sixteen 96" x 2-3/8" OD pipes
Specifications
Product classification
| Product Type | Co-location platform |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Pipe, quantity | 16 |
| Sectors, quantity | 4 |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 762.000 mm | 30 in |
| Mounting Diameter, minimum | 254.000 mm | 10 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact steelproducts@andrew.com or call 800-255-1479 |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Plain end pipes | Platform | Rail | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 1803.030 kg | 3975 lb |
Product classification
| Product Type | Co-location platform |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Mounting | Monopole, 254–762 mm (10–30 in) OD |
| Pipe, quantity | 16 |
| Sectors, quantity | 4 |
Dimensions
| Height | 2438.4 mm | 96 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 762.000 mm | 30 in |
| Mounting Diameter, minimum | 254.000 mm | 10 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact steelproducts@andrew.com or call 800-255-1479 |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Plain end pipes | Platform | Rail | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 1803.030 kg | 3975 lb |
