MTC3984
Base product: MC-HP-SERIES

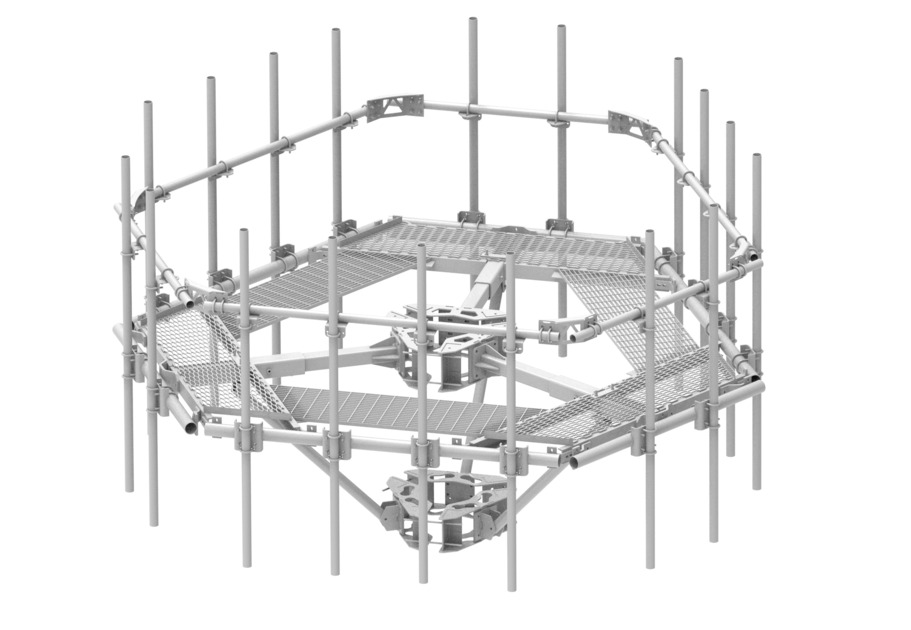

6-Sector Monopole Platform kit, 12 in to 50 in OD, (3) 8 ft faces, (3) 6 ft faces, includes (18) 96 in antenna pipes
Specifications
Product classification
| Product Type | Co-location platform |
| Ordering Note | NSTD445 Compliant |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 18 |
| Sectors, quantity | 6 |
Dimensions
| Height | 2667 mm | 105 in |
| Width | 1828.8 mm | 72 in | 2438.4 mm | 96 in |
| Length | 1950.72 mm | 76.8 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 304.8 mm | 12 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 1950.72 mm | 76.8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe mounts | Plain end pipes | Platform | Rail | Ring mounts (2) |
| Packaging quantity | 1 |
| Weight, net | 1324.648 kg | 2920.35 lb |
Product classification
| Product Type | Co-location platform |
| Ordering Note | NSTD445 Compliant |
General specifications
| Mounting | Monopole, 304.8–1270 mm (12–50 in) OD |
| Pipe, quantity | 18 |
| Sectors, quantity | 6 |
Dimensions
| Height | 2667 mm | 105 in |
| Width | 1828.8 mm | 72 in | 2438.4 mm | 96 in |
| Length | 1950.72 mm | 76.8 in |
| Pipe Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 1270 mm | 50 in |
| Mounting Diameter, minimum | 304.8 mm | 12 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 1950.72 mm | 76.8 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Pipe mounts | Plain end pipes | Platform | Rail | Ring mounts (2) |
| Packaging quantity | 1 |
| Weight, net | 1324.648 kg | 2920.35 lb |
