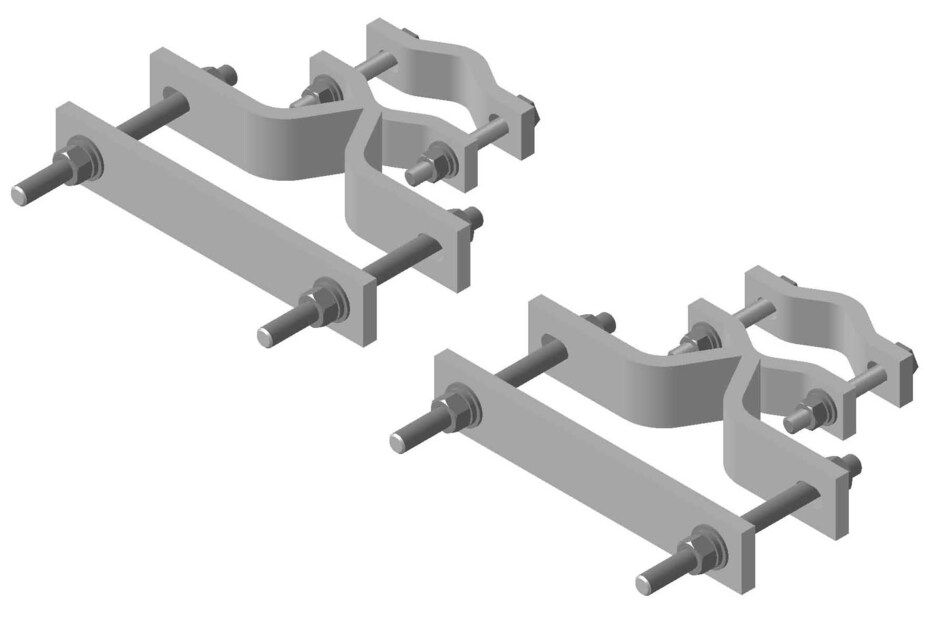

AD-P60-SCP
Boom Gate Clamp Set, 4-1/2 in to 12 in, 60° angle legs
Specifications
Product classification
| Product Type | Clamp set |
General specifications
| Mounting | Adapter clamp kit |
| Tower Taper | Tapered |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 203.2 mm | 8 in |
| Length | 304.8 mm | 12 in |
| Mounting Diameter, maximum | 165.1 mm | 6.5 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 11.3 kg | 24.912 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Clamp set |
General specifications
| Mounting | Adapter clamp kit |
| Tower Taper | Tapered |
Dimensions
| Height | 50.8 mm | 2 in |
| Width | 203.2 mm | 8 in |
| Length | 304.8 mm | 12 in |
| Mounting Diameter, maximum | 165.1 mm | 6.5 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 11.3 kg | 24.912 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
