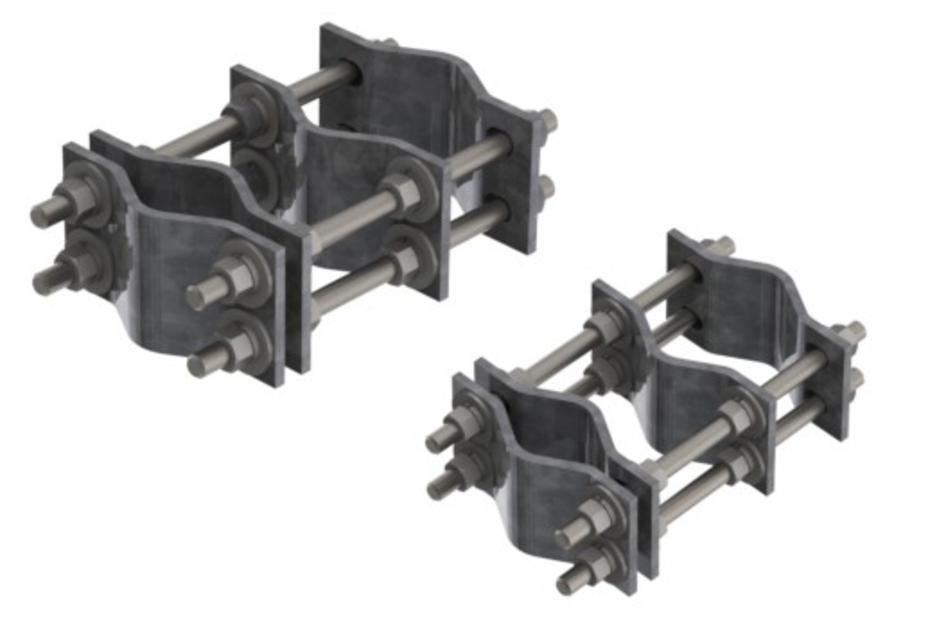

BC-20-10D
Pipe-to-Pipe Clamp Medium Duty, joins two 1-1/2 in to 3-1/2 in OD round members
Specifications
Product classification
| Product Type | Clamp set |
General specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 127 mm | 5 in |
| Width | 203.2 mm | 8 in |
| Length | 254 mm | 10 in |
| Mounting Diameter 2, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter 2, minimum | 38.1 mm | 1.5 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 8.2 kg | 18.078 lb |
Product classification
| Product Type | Clamp set |
General specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 127 mm | 5 in |
| Width | 203.2 mm | 8 in |
| Length | 254 mm | 10 in |
| Mounting Diameter 2, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter 2, minimum | 38.1 mm | 1.5 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 38.1 mm | 1.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 8.2 kg | 18.078 lb |
