MT-216-14NS
Cellular Pipe Frame, 14 ft face
Specifications
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Pipe, 114.3 mm (4-1/2 in) OD |
Dimensions
| Height | 254 mm | 10 in |
| Face Width | 4.42 m | 14.5 ft |
| Width | 4419.6 mm | 174 in |
| Length | 88.9 mm | 3.5 in |

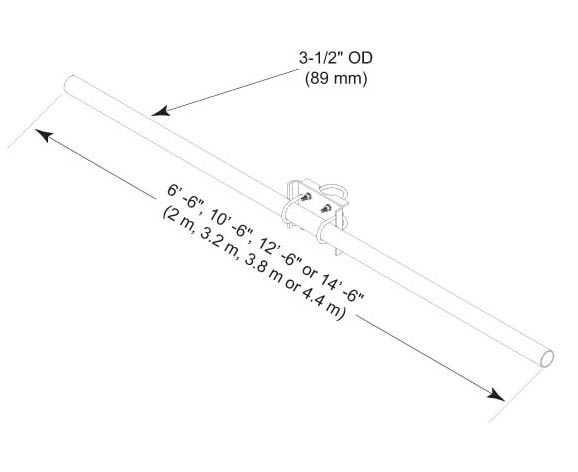

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
| Wind Rating Criteria | Four 72 in x 8 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Cellular pipe frames |
| Packaging quantity | 1 |
| Weight, net | 55.4 kg | 122.136 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Pipe mount |
General specifications
| Mounting | Pipe, 114.3 mm (4-1/2 in) OD |
Dimensions
| Height | 254 mm | 10 in |
| Face Width | 4.42 m | 14.5 ft |
| Width | 4419.6 mm | 174 in |
| Length | 88.9 mm | 3.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL | 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC |
| Wind Rating Criteria | Four 72 in x 8 in panel antennas per sector |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Cellular pipe frames |
| Packaging quantity | 1 |
| Weight, net | 55.4 kg | 122.136 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
