MT-219M-H

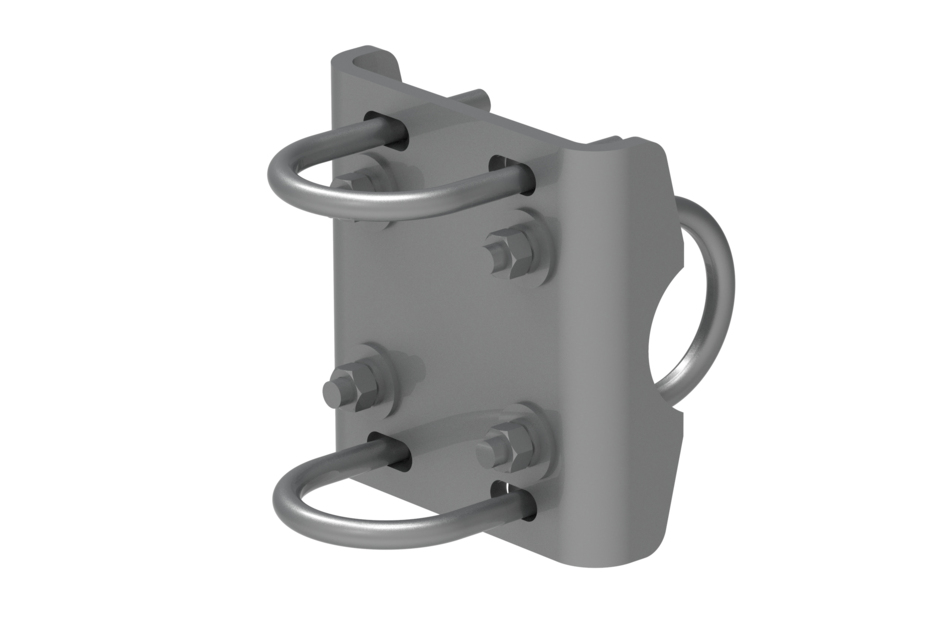

Pipe Mount Hardware Kit for 3-1/2" to 2-7/8" OD Pipes
Specifications
Product classification
| Product Type | Pipe mount kit |
General specifications
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
| Pipe, quantity | 0 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 127 mm | 5 in |
| Length | 127 mm | 5 in |
| Pipe Outer Diameter | 73.66 mm | 2.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Crossover bracket | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 5 kg | 11.023 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Pipe mount kit |
General specifications
| Mounting | Pipe, 88.9 mm (3-1/2 in) OD |
| Pipe, quantity | 0 |
Dimensions
| Height | 254 mm | 10 in |
| Width | 127 mm | 5 in |
| Length | 127 mm | 5 in |
| Pipe Outer Diameter | 73.66 mm | 2.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Crossover bracket | U-bolts |
| Packaging quantity | 1 |
| Weight, net | 5 kg | 11.023 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
