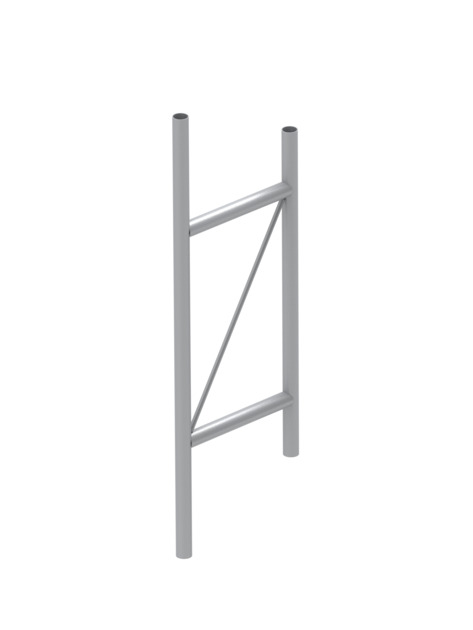

P-200
Panel Antenna Stand-Off Bracket, 24 in
Specifications
Product classification
| Product Type | Stand-off mount |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Note | One 72 in x 8 in panel antenna per sector |
Dimensions
| Height | 1778 mm | 70 in |
| Width | 76.2 mm | 3 in |
| Length | 609.6 mm | 24 in |
| Stand-off Distance | 609.6 mm | 24 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 24.3 kg | 53.572 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Stand-off mount |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Note | One 72 in x 8 in panel antenna per sector |
Dimensions
| Height | 1778 mm | 70 in |
| Width | 76.2 mm | 3 in |
| Length | 609.6 mm | 24 in |
| Stand-off Distance | 609.6 mm | 24 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 24.3 kg | 53.572 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
