SFG-FP-12.5-4-48

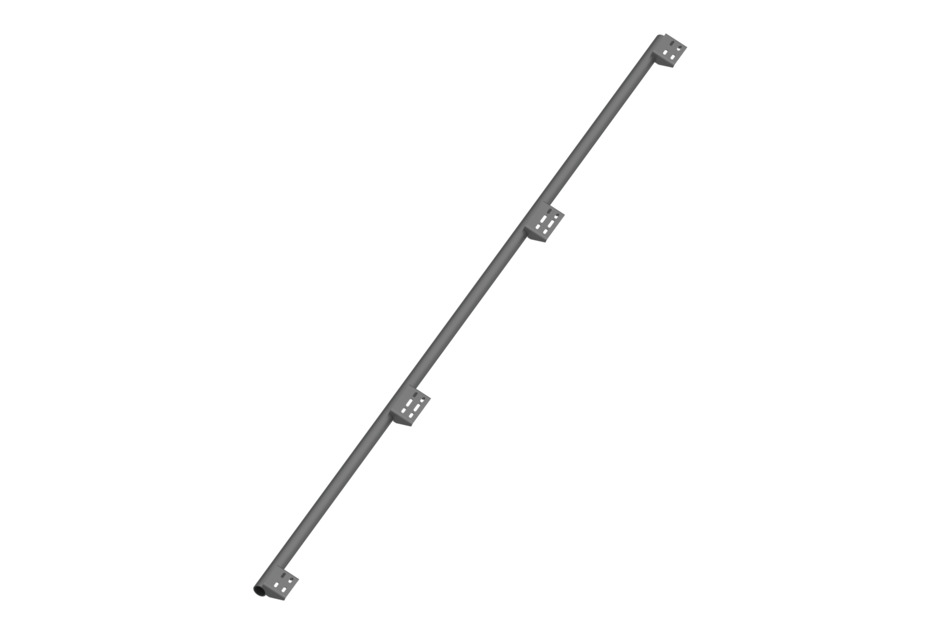

Custom Face Pipe for G2 Series Sector Frames to enable Fixed Distance Antenna Spacing - 12fit 6in x 2-7/8" OD Face for (4) Antennas with 48" Spacing. Antenna pipes sold separately.
Specifications
Product classification
| Product Type | Accessory |
| Product Series | G2 |
General specifications
| Pipe, quantity | 1 |
Dimensions
| Face Width | 3.810 m | 12.5 ft |
| Width | 3810.000 mm | 150 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Pipe |
| Packaging quantity | 1 |
| Weight, net | 38.669 kg | 85.25 kg |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Accessory |
| Product Series | G2 |
General specifications
| Pipe, quantity | 1 |
Dimensions
| Face Width | 3.810 m | 12.5 ft |
| Width | 3810.000 mm | 150 in |
| Pipe Outer Diameter | 73.025 mm | 2.875 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Pipe |
| Packaging quantity | 1 |
| Weight, net | 38.669 kg | 85.25 kg |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
