860677769-001

Base product: RRU-MOUNTS

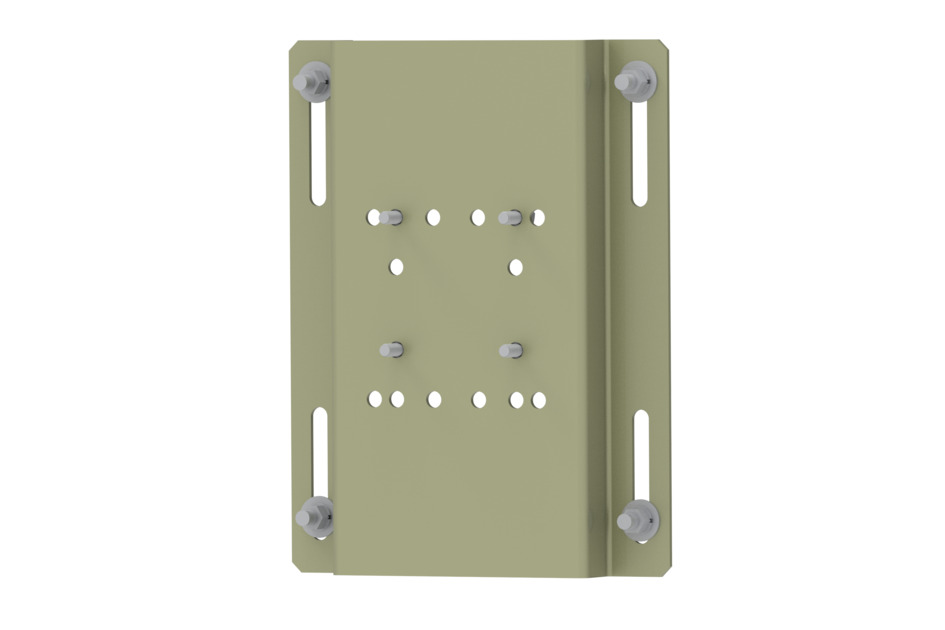

Radio Mount interface plate to enable Ericsson 8843/4449/4490/4890/ERS radios to attach to standard radio mounts

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
Features and benefits
Interface plate to allow an Ericsson 8843/4449/4490/4890 to be mounted to a standard universal radio mount bracket. Includes (2) units and typical hardware to mount to the radio bracket.

Also supports other ERS / 4415 / 4426 / 4478 radios. See data sheet for list. If your radio is not listed please reach out to your ANDREW account manager for support.

Supports the patterns:
cc80x80
cc110x110
cc30x110
cc80x110

Product classification

Product Type Remote radio head unit mount
Ordering Note ANDREW® standard product with terms
Warranty One year

General specifications

Radio Compatibility, Ericsson 4415 | 4426 | 4449 | 4460 | 4467 | 4478 | 4490 | 4890 | 8843 | 8863 | ERS

Dimensions

Height 323.850 mm | 12.75 in
Width 254.000 mm | 10 in
Length 36.322 mm | 1.43 in

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Bracket | Hardware
Packaging quantity 2

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Remote radio head unit mount
Ordering Note ANDREW® standard product with terms
Warranty One year

General specifications

Radio Compatibility, Ericsson 4415 | 4426 | 4449 | 4460 | 4467 | 4478 | 4490 | 4890 | 8843 | 8863 | ERS

Dimensions

Height 323.850 mm | 12.75 in
Width 254.000 mm | 10 in
Length 36.322 mm | 1.43 in

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Bracket | Hardware
Packaging quantity 2

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
