RR-B2B-AR
Base product: RRU-MOUNTS

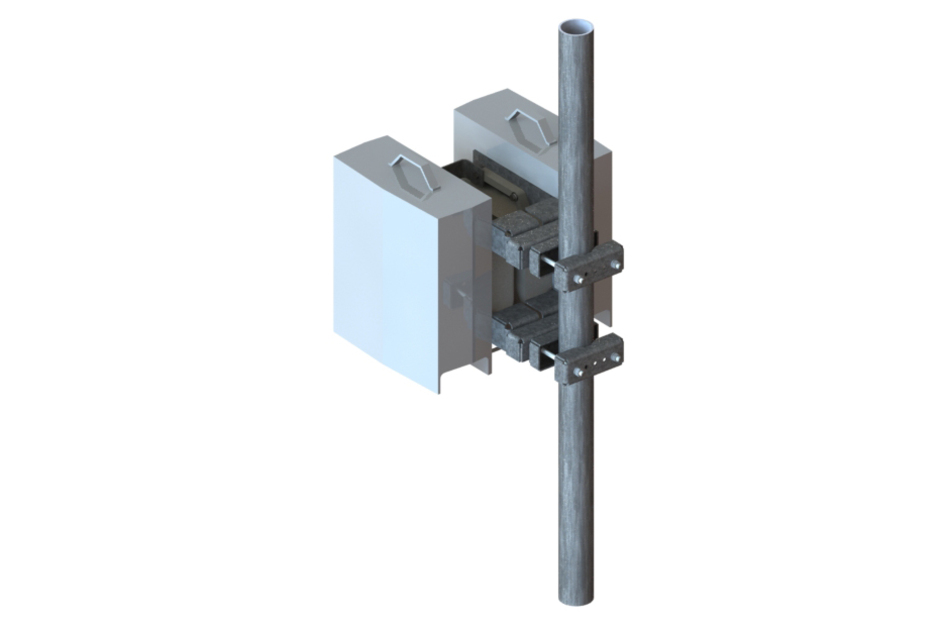

Low Profile Access Ready RRU Mount Kit for Back-to-Back Mounting of (2) RRUs to Round Members 2-3/8" to 3-1/2" OD
Specifications
Product classification
| Product Type | Remote radio head unit mount |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Mounting | Pipe, 60.3–88.9 mm (2-3/8 in to 3-1/2 in) OD |
Dimensions
| Height | 340.36 mm | 13.4 in |
| Length | 462.28 mm | 18.2 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
| Weight, net | 16.329 kg | 36 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Remote radio head unit mount |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Mounting | Pipe, 60.3–88.9 mm (2-3/8 in to 3-1/2 in) OD |
Dimensions
| Height | 340.36 mm | 13.4 in |
| Length | 462.28 mm | 18.2 in |
| Mounting Diameter, maximum | 88.9 mm | 3.5 in |
| Mounting Diameter, minimum | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
| Weight, net | 16.329 kg | 36 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Documentation & downloads
