RR-B2B-LP-LD
Base product: RRU-MOUNTS

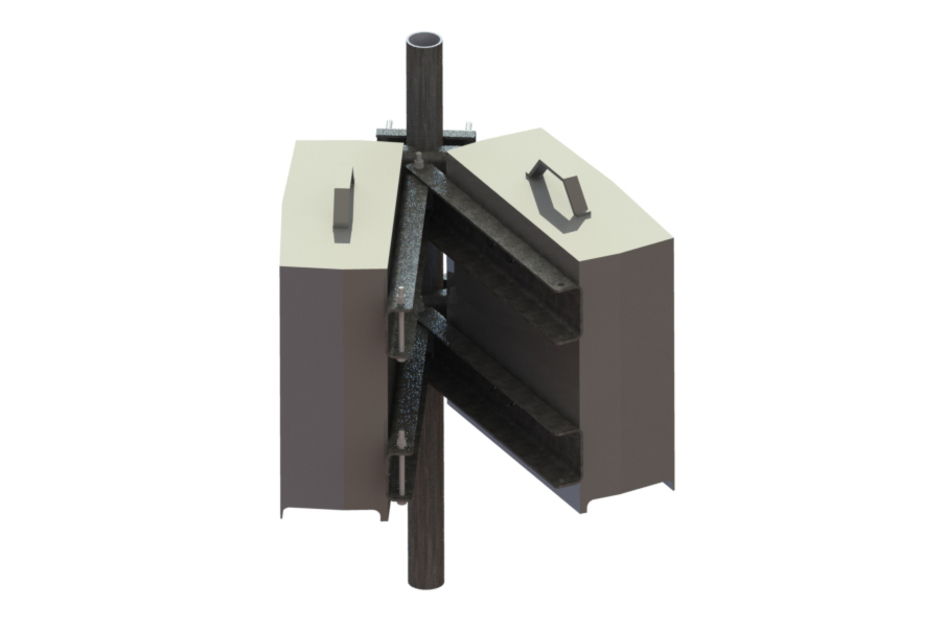

Low Profile Light Duty RRU Mount Kit for Back-to-Back Mounting of (2) RRUs to to Round Members 2-3/8" to 4-1/2" OD
Specifications
Product classification
| Product Type | Remote radio head unit mount |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Mounting | Pipe, 60.3–114.3 mm (2-3/8 in to 4-1/2 in) OD |
Dimensions
| Height | 314.96 mm | 12.4 in |
| Length | 533.4 mm | 21 in |
| Mounting Diameter, maximum | 114.300 mm | 4.5 in |
| Mounting Diameter, minimum | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
| Weight, net | 9.163 kg | 20.2 lb |
Product classification
| Product Type | Remote radio head unit mount |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Mounting | Pipe, 60.3–114.3 mm (2-3/8 in to 4-1/2 in) OD |
Dimensions
| Height | 314.96 mm | 12.4 in |
| Length | 533.4 mm | 21 in |
| Mounting Diameter, maximum | 114.300 mm | 4.5 in |
| Mounting Diameter, minimum | 60.96 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Clamps | Hardware |
| Packaging quantity | 2 |
| Weight, net | 9.163 kg | 20.2 lb |
