TP-MSC

Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

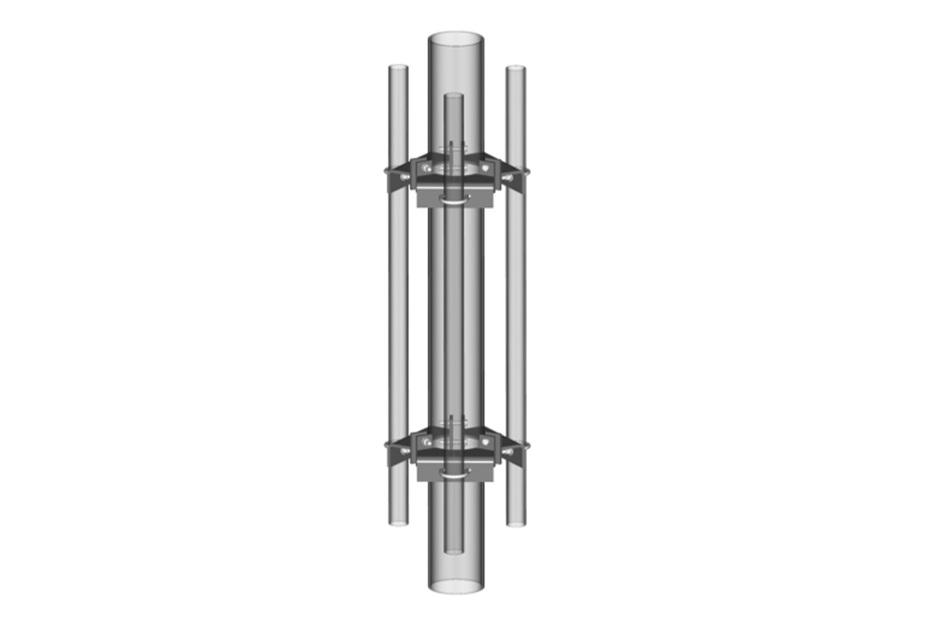

Multi-Sector Cluster Mount, 4"-6" OD

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Tripod mount component

General specifications

Mounting Round member, 101.6–152.4 mm (4–6 in) OD

Dimensions

Height 101.6 mm | 4 in
Width 330.2 mm | 13 in
Length 0.335 m | 1.1 ft
Pipe Outer Diameter 60.96 mm | 2.4 in
Stand-off Distance 114.3 mm | 4.5 in

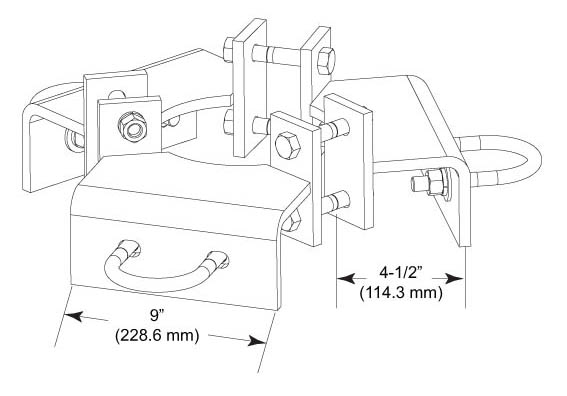

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating For Specifications, please contact your local ANDREW representative

Packaging and weights

Included Brackets | U-bolts
Packaging quantity 1
Weight, net 20.3 kg | 44.754 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Tripod mount component

General specifications

Mounting Round member, 101.6–152.4 mm (4–6 in) OD

Dimensions

Height 101.6 mm | 4 in
Width 330.2 mm | 13 in
Length 0.335 m | 1.1 ft
Pipe Outer Diameter 60.96 mm | 2.4 in
Stand-off Distance 114.3 mm | 4.5 in

Material specifications

Material Type Hot dip galvanized steel

Mechanical specifications

Wind Rating For Specifications, please contact your local ANDREW representative

Packaging and weights

Included Brackets | U-bolts
Packaging quantity 1
Weight, net 20.3 kg | 44.754 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
