MD-CSA4

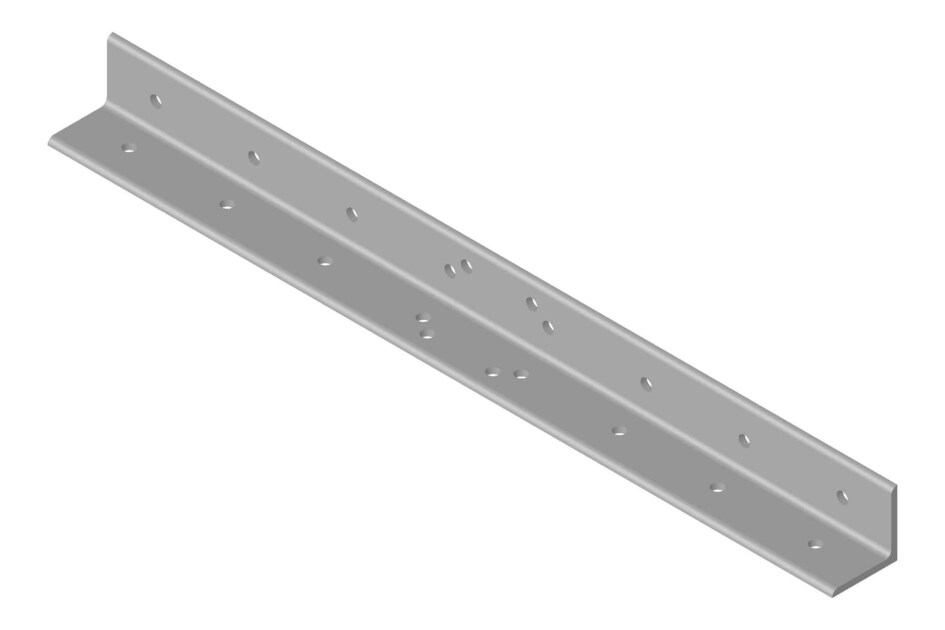

Angle for Microwave Strut Support Bracket, 48 in
Specifications
Product classification
| Product Type | Microwave strut component |
General specifications
| Pipe, quantity | 0 |
Dimensions
| Height | 101.6 mm | 4 in |
| Width | 1219.2 mm | 48 in |
| Length | 101.6 mm | 4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Angle |
| Packaging quantity | 1 |
| Weight, net | 17.3 kg | 38.14 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
