TF-GM6-63
Base product: TOWER-FACE-MOUNTS

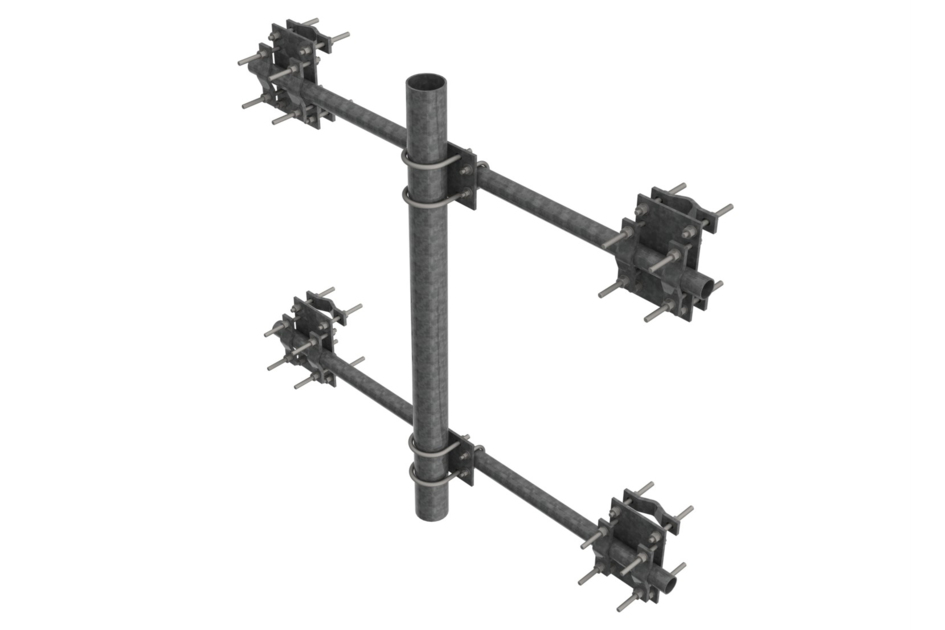

Guy Tower Face Mount, 6 ft face
Specifications
Product classification
| Product Type | Tower face mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered |
Dimensions
| Height | 1600.2 mm | 63 in |
| Face Width | 1.829 m | 6 ft |
| Width | 1828.800 mm | 72 in |
| Length | 304.8 mm | 12 in |
| Pipe Length | 1600.2 mm | 63 in |
| Face Support Pipe Diameter | 60.960 mm | 2.4 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Crossover plates | Pipes | Saddle mounts |
| Packaging quantity | 1 |
| Weight, net | 104.417 kg | 230.2 lb |
Product classification
| Product Type | Tower face mount |
General specifications
| Mounting | Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered |
Dimensions
| Height | 1600.2 mm | 63 in |
| Face Width | 1.829 m | 6 ft |
| Width | 1828.800 mm | 72 in |
| Length | 304.8 mm | 12 in |
| Pipe Length | 1600.2 mm | 63 in |
| Face Support Pipe Diameter | 60.960 mm | 2.4 in |
| Mounting Diameter, maximum | 203.2 mm | 8 in |
| Mounting Diameter, minimum | 0 mm | 0 in |
| Pipe Outer Diameter | 114.3 mm | 4.5 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | 120 mph (BWS) at 100 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and weights
| Included | Crossover plates | Pipes | Saddle mounts |
| Packaging quantity | 1 |
| Weight, net | 104.417 kg | 230.2 lb |
