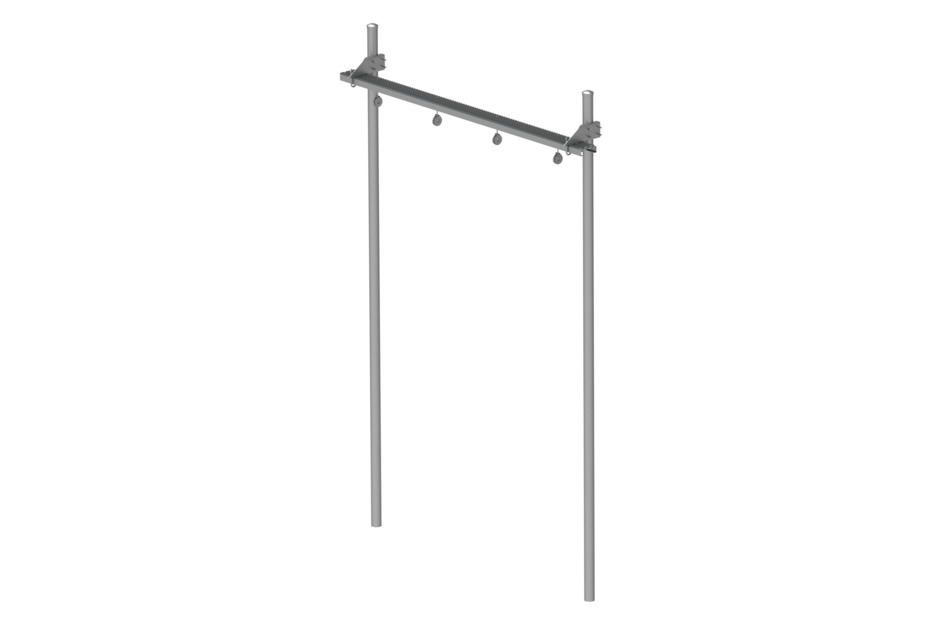

CSWB710-146-CH158
Safety Grated Waveguide Bridge Kit, 7 in x 10 ft, with two 14 ft 6 in direct burial posts, 1-5/8" Cable
Specifications
Product classification
| Product Type | Waveguide bridge kit |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Application | Direct burial |
Dimensions
| Height | 4437.380 mm | 174.7 in |
| Width | 406.400 mm | 16 in |
| Length | 3058.160 mm | 120.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Caps | Channel | Hardware | Posts | Support brackets |
| Packaging quantity | 1 |
| Weight, net | 126 kg | 277.782 lb |
Product classification
| Product Type | Waveguide bridge kit |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Application | Direct burial |
Dimensions
| Height | 4437.380 mm | 174.7 in |
| Width | 406.400 mm | 16 in |
| Length | 3058.160 mm | 120.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Caps | Channel | Hardware | Posts | Support brackets |
| Packaging quantity | 1 |
| Weight, net | 126 kg | 277.782 lb |
