MF-511

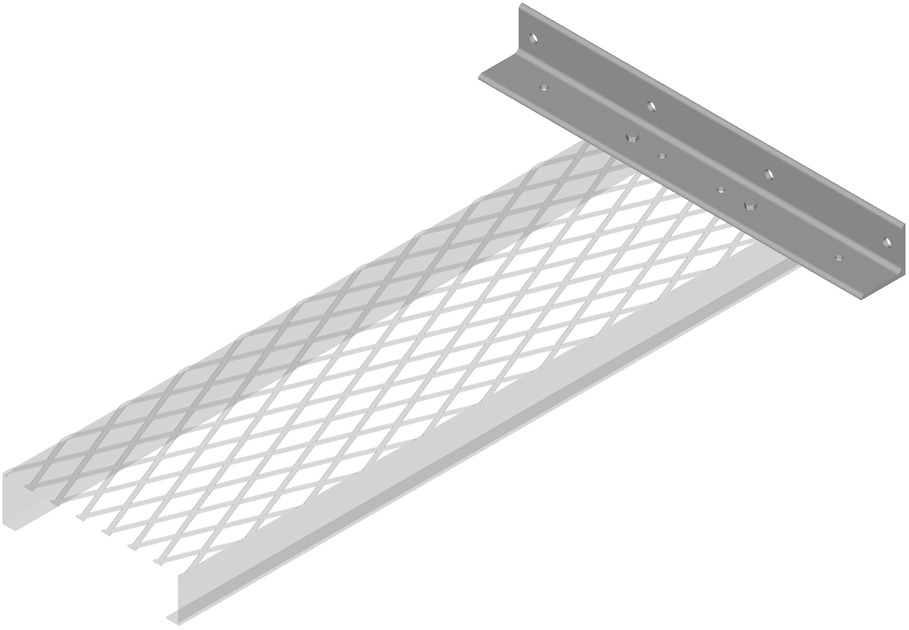

Wall Support Angle, single or double
Specifications
Product classification
| Product Type | Wall mount kit |
General specifications
| Application | Wall mount |
| Mounting | All bridge channel types |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 76.2 mm | 3 in |
| Length | 660.4 mm | 26 in |

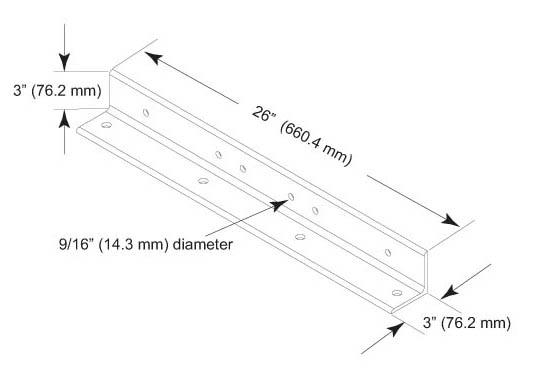

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle brackets |
| Packaging quantity | 1 |
| Weight, net | 5 kg | 11.023 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Wall mount kit |
General specifications
| Application | Wall mount |
| Mounting | All bridge channel types |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 76.2 mm | 3 in |
| Length | 660.4 mm | 26 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Angle brackets |
| Packaging quantity | 1 |
| Weight, net | 5 kg | 11.023 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
