MT-F504
Adjustable Splice
Specifications
Product classification
| Product Type | Splices and splicing kits |
General specifications
| Application | Waveguide bridge kit, 12 in |
| Mounting | Solid and grated waveguide bridge |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 355.6 mm | 14 in |
| Length | 431.8 mm | 17 in |

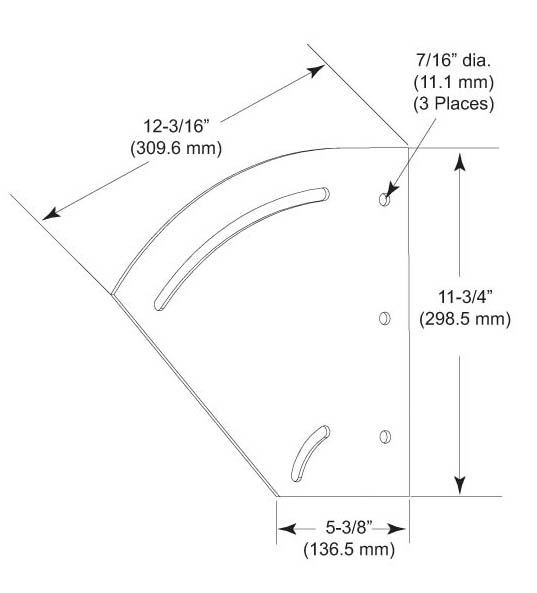

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Splices |
| Packaging quantity | 1 |
| Weight, net | 2 kg | 4.409 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Splices and splicing kits |
General specifications
| Application | Waveguide bridge kit, 12 in |
| Mounting | Solid and grated waveguide bridge |
Dimensions
| Height | 76.2 mm | 3 in |
| Width | 355.6 mm | 14 in |
| Length | 431.8 mm | 17 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Splices |
| Packaging quantity | 1 |
| Weight, net | 2 kg | 4.409 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Documentation & downloads
Assembly drawing
Product specification
Assembly drawing
Product compliance documentation
Product specification
