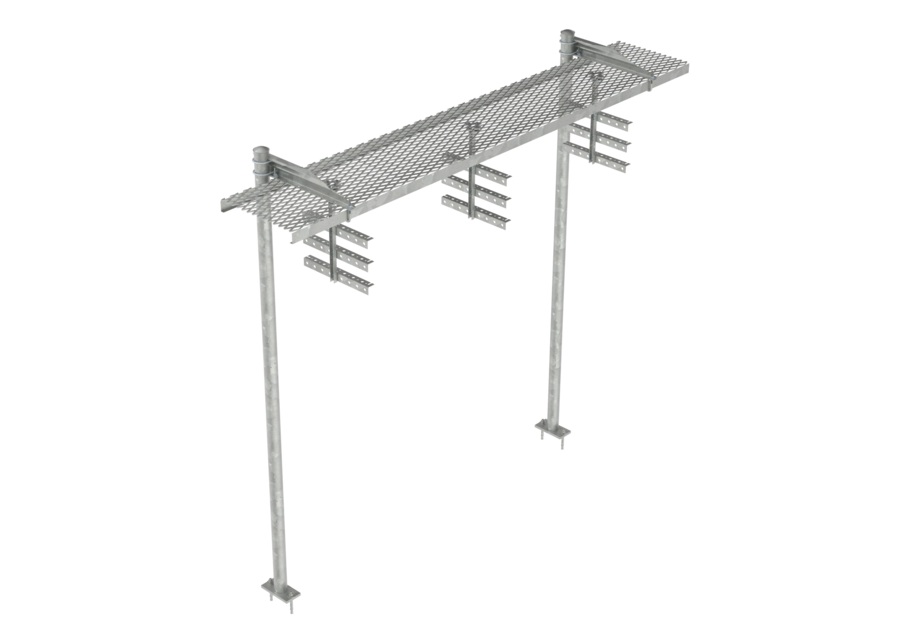

WB-K212-S
Safety Grated Waveguide Bridge Kit, 24 in x 12 ft, with two 10 ft 6 in base shoe posts
Specifications
Product classification
| Product Type | Waveguide bridge kit |
General specifications
| Application | Base shoe |
| Cable Runs, quantity | 24 |
| Pipe, quantity | 2 |
Dimensions
| Height | 3200.4 mm | 126 in |
| Width | 609.6 mm | 24 in |
| Length | 3657.600 mm | 144 in |
| Pipe Length | 3355.340 mm | 132.1 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Caps | Channel | Hardware | Posts | Support brackets | Trapeze |
| Packaging quantity | 1 |
| Weight, net | 120.6 kg | 265.877 lb |
Product classification
| Product Type | Waveguide bridge kit |
General specifications
| Application | Base shoe |
| Cable Runs, quantity | 24 |
| Pipe, quantity | 2 |
Dimensions
| Height | 3200.4 mm | 126 in |
| Width | 609.6 mm | 24 in |
| Length | 3657.600 mm | 144 in |
| Pipe Length | 3355.340 mm | 132.1 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Caps | Channel | Hardware | Posts | Support brackets | Trapeze |
| Packaging quantity | 1 |
| Weight, net | 120.6 kg | 265.877 lb |
