2HH-33A-R4
8-port multibeam antenna, 8x 1695–2400 MHz, 4x 38° HPBW, 4x RET with retractable tilt rods
Features and benefits
- Enhances network capacity through six sectors site application with only three antenna faces
- Maximizes frequency spectrum utilization to increase Average Revenue Per User (ARPU)
- Reduces antenna count to minimize Cap-Ex and Op-Ex costs
- High gain with excellent sector edge roll-off and azimuth sidelobe suppression
- Each antenna downtilt can be independently adjusted for greater flexibility in network optimization
- Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios (Supports_r)
Specifications
General specifications
| Antenna Type | Multi-beam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (4) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1350 mm | 53.15 in |
| Net Weight, without mounting kit | 30.8 kg | 67.902 lb |

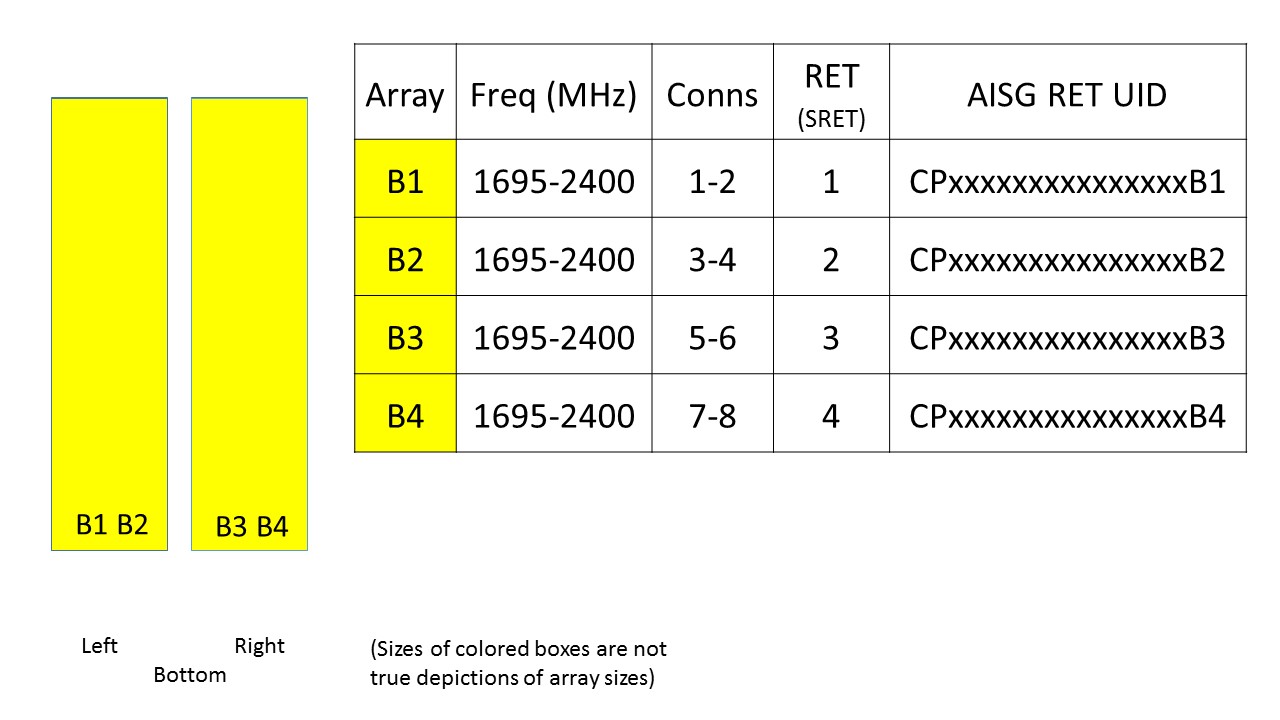

Array layout
| Click on image to enlarge. |

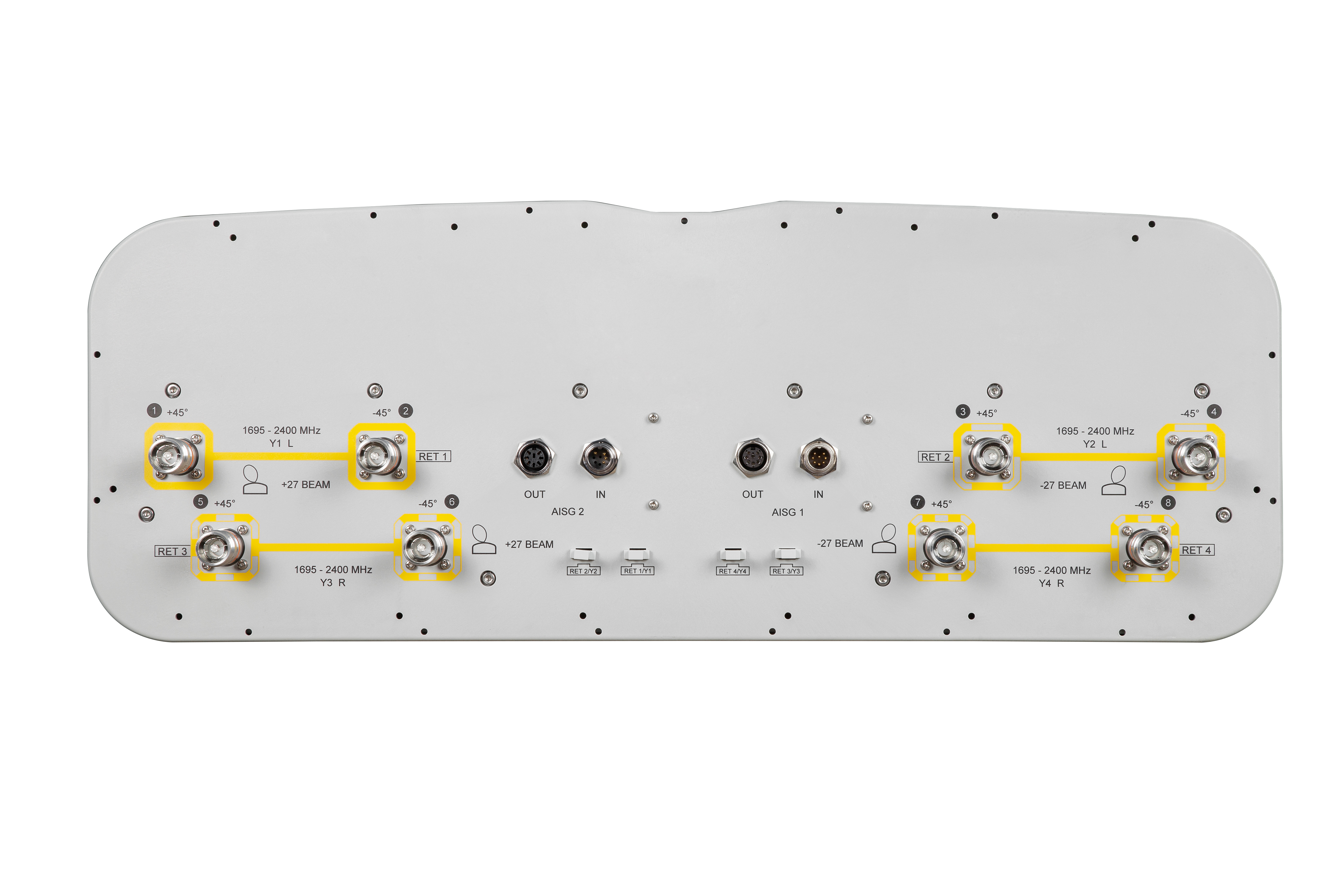

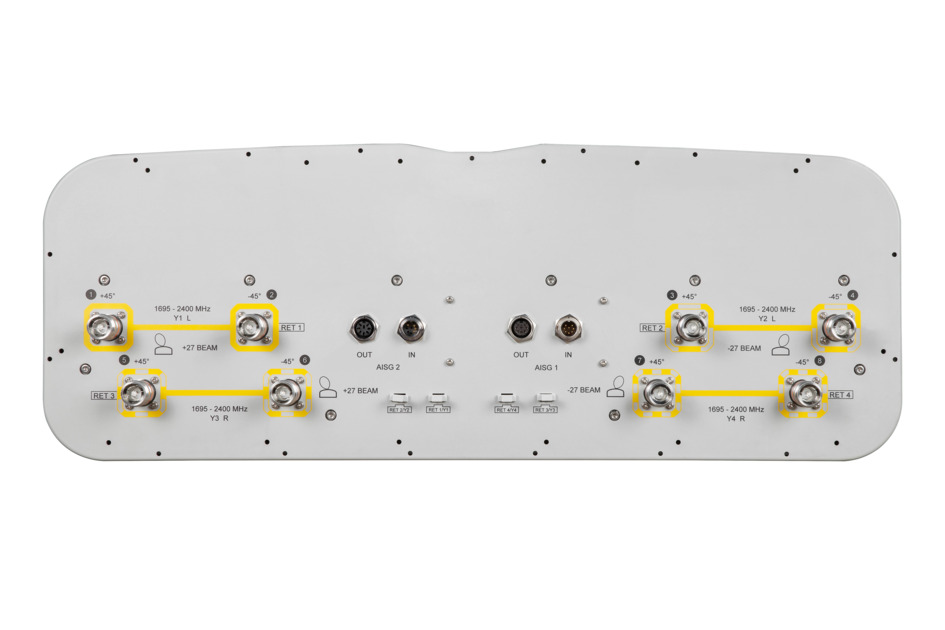

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2400 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 400 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2400 |
| Gain, dBi | 19.1 | 19.7 | 19.9 | 19.4 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 38 | 36 | 33 | 29 |
| Beamwidth, Vertical, degrees | 7.4 | 7 | 6.6 | 5.9 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 20 | 19 | 17 |
| Front-to-Back Ratio at 180°, dB | 37 | 37 | 35 | 33 |
| CPR at Boresight, dB | 21 | 22 | 19 | 13 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 16 | 16 | 16 | 16 |
| VSWR | Return loss, dB | 1.46 | 14.5 | 1.46 | 14.5 | 1.46 | 14.5 | 1.46 | 14.5 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 | 200 | 200 |
Mechanical specifications
| Mechanical Tilt Range | 0°–24° |
| Wind Loading @ Velocity, frontal | 557.0 N @ 150 km/h (125.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 175.0 N @ 150 km/h (39.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 759.0 N @ 150 km/h (170.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 574.0 N @ 150 km/h (129.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 797 mm | 31.378 in |
| Depth, packed | 402 mm | 15.827 in |
| Length, packed | 1501 mm | 59.095 in |
| Weight, gross | 41.7 kg | 91.933 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
General specifications
| Antenna Type | Multi-beam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (4) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1350 mm | 53.15 in |
| Net Weight, without mounting kit | 30.8 kg | 67.902 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2400 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 400 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2400 |
| Gain, dBi | 19.1 | 19.7 | 19.9 | 19.4 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 38 | 36 | 33 | 29 |
| Beamwidth, Vertical, degrees | 7.4 | 7 | 6.6 | 5.9 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 20 | 19 | 17 |
| Front-to-Back Ratio at 180°, dB | 37 | 37 | 35 | 33 |
| CPR at Boresight, dB | 21 | 22 | 19 | 13 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 16 | 16 | 16 | 16 |
| VSWR | Return loss, dB | 1.46 | 14.5 | 1.46 | 14.5 | 1.46 | 14.5 | 1.46 | 14.5 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 | 200 | 200 |
Mechanical specifications
| Mechanical Tilt Range | 0°–24° |
| Wind Loading @ Velocity, frontal | 557.0 N @ 150 km/h (125.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 175.0 N @ 150 km/h (39.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 759.0 N @ 150 km/h (170.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 574.0 N @ 150 km/h (129.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 797 mm | 31.378 in |
| Depth, packed | 402 mm | 15.827 in |
| Length, packed | 1501 mm | 59.095 in |
| Weight, gross | 41.7 kg | 91.933 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
