2UPX210B-T2-V2
4-port multibeam antenna, 4x 694–896 MHz, 2x 37° HPBW, 2x RET
Features and benefits
- Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt on both beams
- Single panel design supporting two separate beams perfectly optimized at horizontal pointing angles of +27 degrees and –27 degrees from boresight
Specifications
General specifications
| Antenna Type | Multi-beam |
| Band | Single band |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 2533 mm | 99.724 in |
| Net Weight, antenna only | 56.6 kg | 124.781 lb |

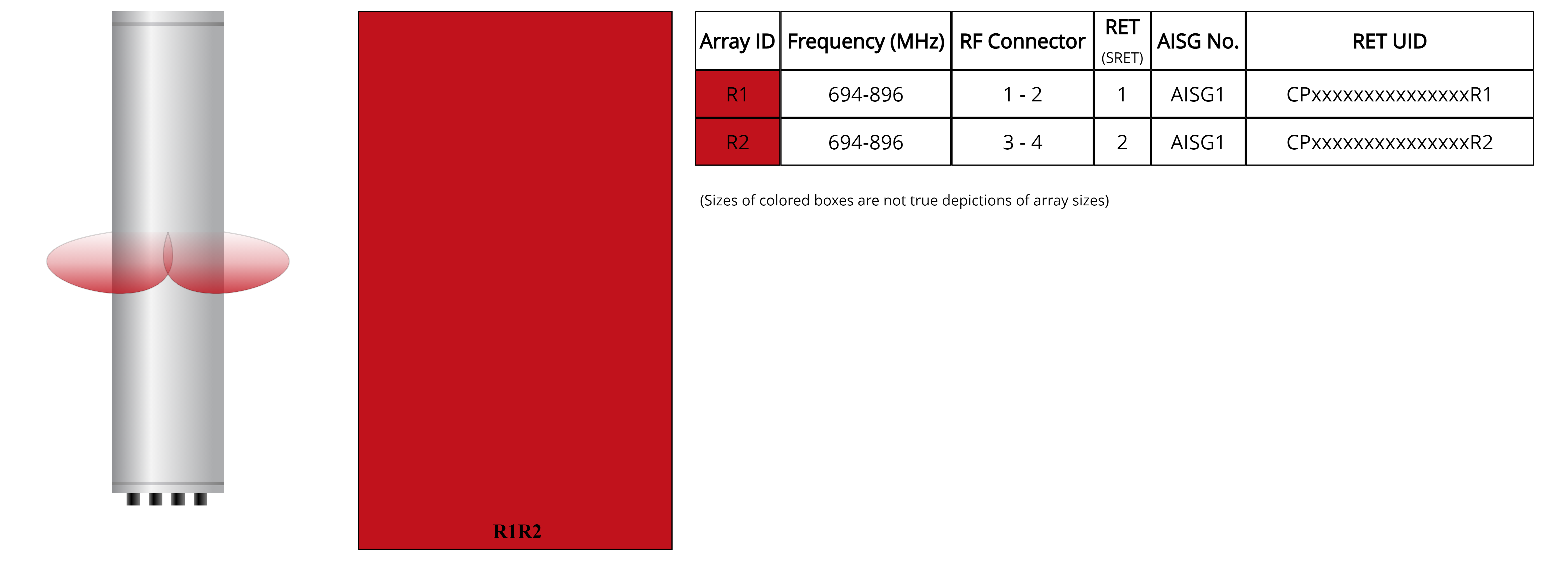

Array layout
| Click on image to enlarge. |

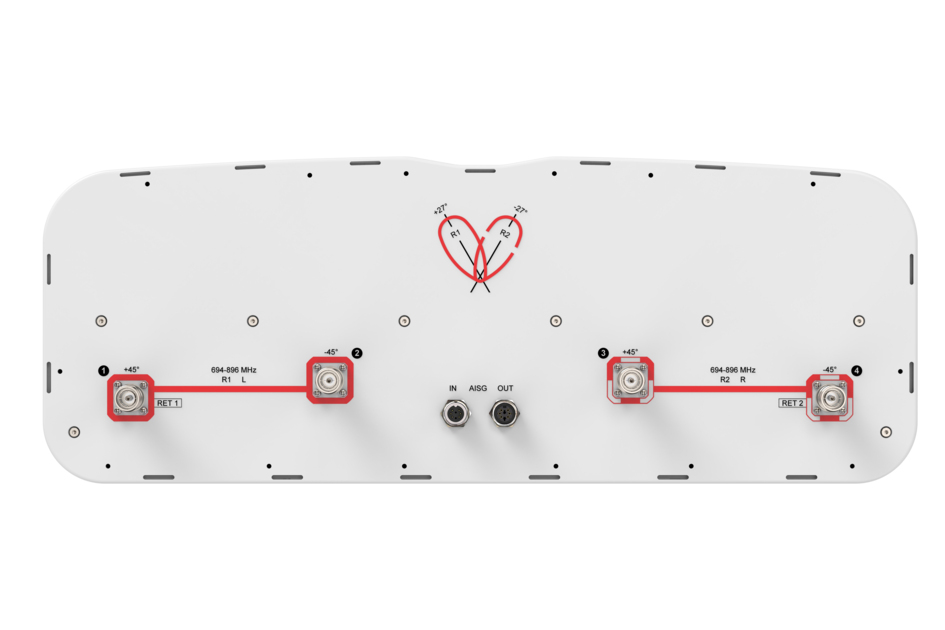

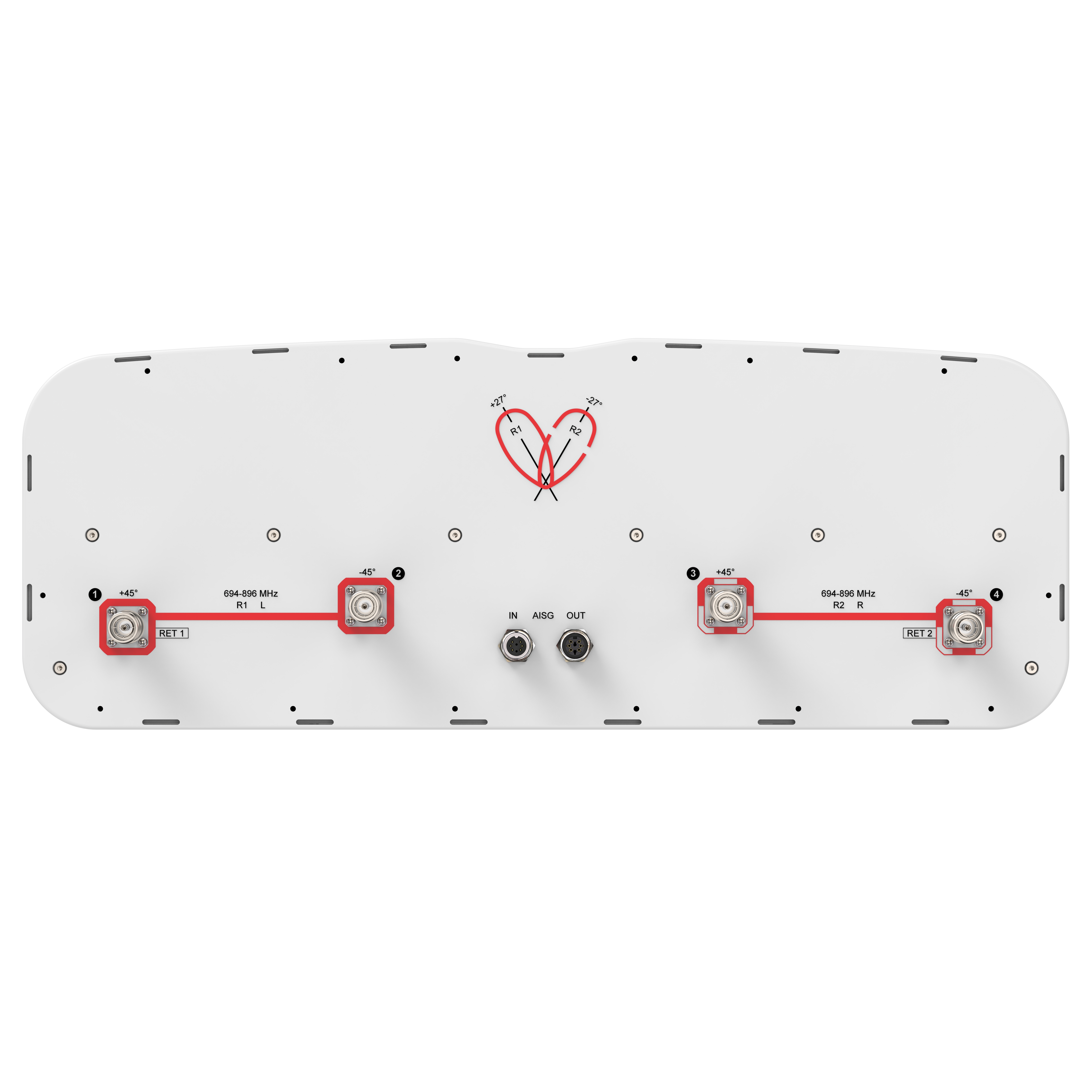

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 896 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 700 W @ 50 °C |
| BASTA Version, electrical | BASTA v12 |
Electrical specifications
| R1,R2 | R1,R2 | |
| Frequency Band, MHz | 694–806 | 806–896 |
| RF Port | 1-4 | 1-4 |
| Gain at Mid Tilt, dBi | 17.2 | 18.7 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 40 | 35 |
| Beamwidth, Vertical, degrees | 8.8 | 7.6 |
| Beam Tilt, degrees | 2–12 | 2–12 |
| USLS (First Lobe), dB | 18 | 16 |
| Front-to-Back Ratio at 180°, dB | 25 | 31 |
| Front-to-Back Total Power at 180° ± 30°, dB | 22 | 23 |
| CPR at Boresight, dB | 18 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 |
| Isolation, Beam to Beam, dB | 17 | 17 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 |
Mechanical specifications
| BASTA Version, mechanical | BASTA v11 |
| Wind Loading @ Velocity, frontal | 1,102.0 N @ 150 km/h (247.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 372.0 N @ 150 km/h (83.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,497.0 N @ 150 km/h (336.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,135.0 N @ 150 km/h (255.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 744 mm | 29.291 in |
| Depth, packed | 346 mm | 13.622 in |
| Length, packed | 2662 mm | 104.803 in |
| Weight, gross | 76.5 kg | 168.653 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Multi-beam |
| Band | Single band |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 2533 mm | 99.724 in |
| Net Weight, antenna only | 56.6 kg | 124.781 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 896 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 700 W @ 50 °C |
| BASTA Version, electrical | BASTA v12 |
Electrical specifications
| R1,R2 | R1,R2 | |
| Frequency Band, MHz | 694–806 | 806–896 |
| RF Port | 1-4 | 1-4 |
| Gain at Mid Tilt, dBi | 17.2 | 18.7 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 40 | 35 |
| Beamwidth, Vertical, degrees | 8.8 | 7.6 |
| Beam Tilt, degrees | 2–12 | 2–12 |
| USLS (First Lobe), dB | 18 | 16 |
| Front-to-Back Ratio at 180°, dB | 25 | 31 |
| Front-to-Back Total Power at 180° ± 30°, dB | 22 | 23 |
| CPR at Boresight, dB | 18 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 |
| Isolation, Beam to Beam, dB | 17 | 17 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 200 | 200 |
Mechanical specifications
| BASTA Version, mechanical | BASTA v11 |
| Wind Loading @ Velocity, frontal | 1,102.0 N @ 150 km/h (247.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 372.0 N @ 150 km/h (83.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,497.0 N @ 150 km/h (336.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,135.0 N @ 150 km/h (255.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 744 mm | 29.291 in |
| Depth, packed | 346 mm | 13.622 in |
| Length, packed | 2662 mm | 104.803 in |
| Weight, gross | 76.5 kg | 168.653 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
