4SS-15B-R4B
16-Port Multibeam antenna, 16x 3300-4000 MHz, 4x 15° HPBW, 4x RET
Features and benefits
- Ultra-high capacity antenna provides increased throughput for special events or very high traffic locations
- Provides higher capacity than single radio massive MIMO solution
- Multibeam antenna with 4x HB beam
- All beams support 4T4R service or 2T2R service
- Novel design produces stable beam peak positions
Specifications
General specifications
| Antenna Type | Multi-beam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 16 |
| RF Connector Quantity, total | 16 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | AISG1 8-pin DIN Female | AISG1 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Internal Bias Tee | Port 1 |
| Internal RET | High band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 430 mm | 16.929 in |
| Depth | 197 mm | 7.756 in |
| Length | 1848 mm | 72.756 in |
| Net Weight, without mounting kit | 39.8 kg | 87.744 lb |

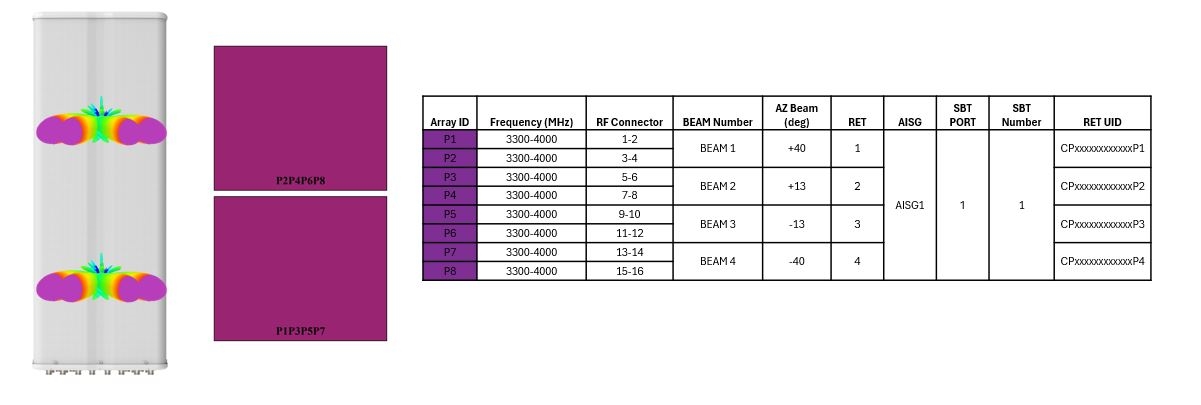

Array layout
| Click on image to enlarge. |

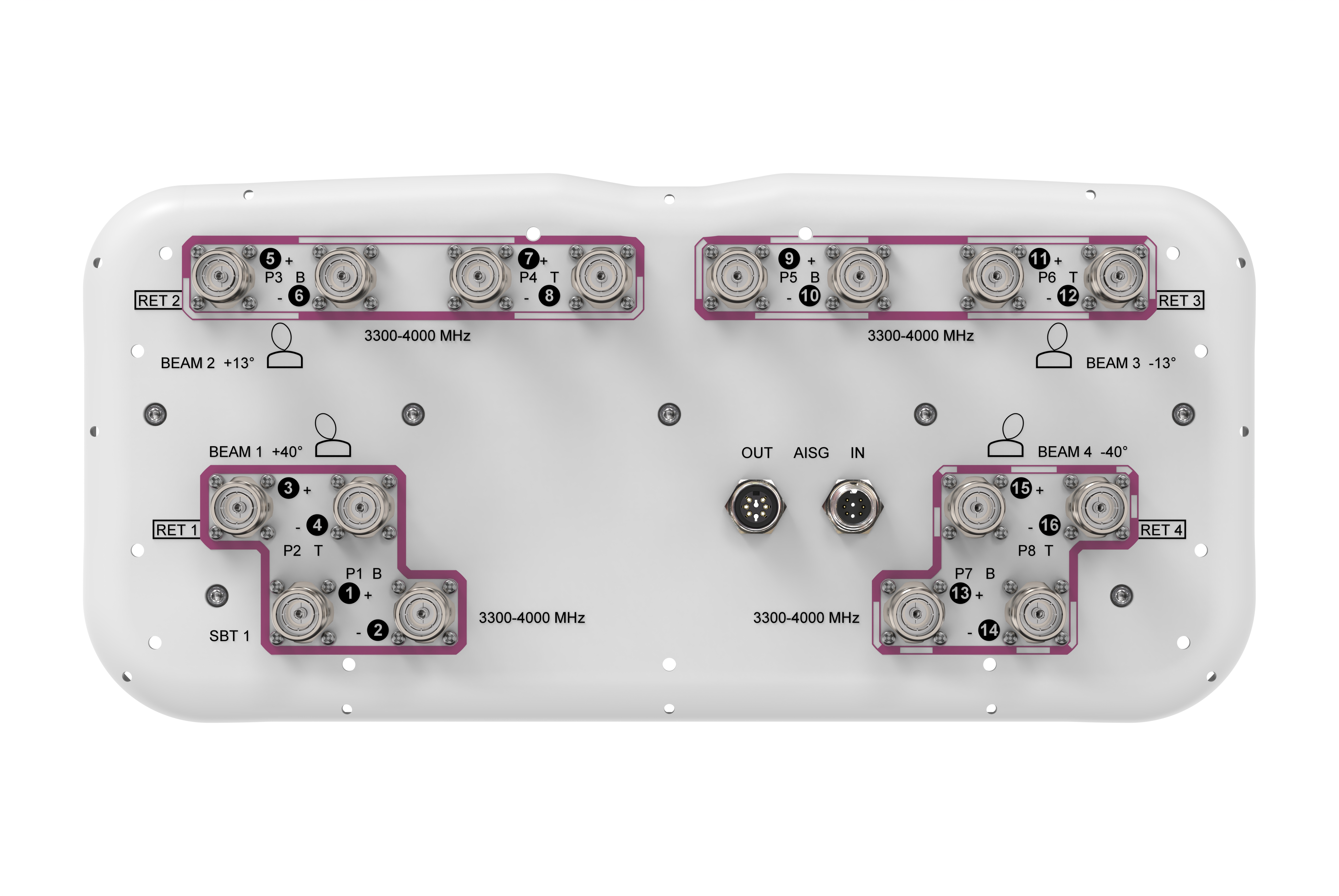

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 4000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,280 W |
Electrical specifications
| P1-P8 | P1-P8 | P1-P8 | |
| Frequency Band, MHz | 3300–3400 | 3400–3700 | 3700–4000 |
| RF Port | 1-16 | 1-16 | 1-16 |
| Gain, Maximum, dBi | 21.800 | 22.400 | 22.500 |
| Gain, dBi | 21.0 | 21.5 | 21.6 |
| Beam Centers, Horizontal, degrees | ±13 ±40 | ±13 ±40 | ±13 ±40 |
| Beamwidth, Horizontal, degrees | 17 | 16 | 15 |
| Beamwidth, Vertical, degrees | 6.6 | 6.3 | 5.9 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 15 | 16 | 16 |
| Front-to-Back Ratio at 180°, dB | 30 | 30 | 28 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 17 | 17 | 17 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -145 | -145 | -145 |
| Input Power per Port, maximum, watts | 80 | 80 | 80 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 432.0 N @ 150 km/h (97.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 219.0 N @ 150 km/h (49.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 650.0 N @ 150 km/h (146.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 276.0 N @ 150 km/h (62.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Packaging and weights
| Width, packed | 530 mm | 20.866 in |
| Depth, packed | 349 mm | 13.740 in |
| Length, packed | 2020 mm | 79.528 in |
| Weight, gross | 52.7 kg | 116.183 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Multi-beam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 16 |
| RF Connector Quantity, total | 16 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | AISG1 8-pin DIN Female | AISG1 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Internal Bias Tee | Port 1 |
| Internal RET | High band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 430 mm | 16.929 in |
| Depth | 197 mm | 7.756 in |
| Length | 1848 mm | 72.756 in |
| Net Weight, without mounting kit | 39.8 kg | 87.744 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 4000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,280 W |
Electrical specifications
| P1-P8 | P1-P8 | P1-P8 | |
| Frequency Band, MHz | 3300–3400 | 3400–3700 | 3700–4000 |
| RF Port | 1-16 | 1-16 | 1-16 |
| Gain, Maximum, dBi | 21.800 | 22.400 | 22.500 |
| Gain, dBi | 21.0 | 21.5 | 21.6 |
| Beam Centers, Horizontal, degrees | ±13; ±40 | ±13; ±40 | ±13; ±40 |
| Beamwidth, Horizontal, degrees | 17 | 16 | 15 |
| Beamwidth, Vertical, degrees | 6.6 | 6.3 | 5.9 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 15 | 16 | 16 |
| Front-to-Back Ratio at 180°, dB | 30 | 30 | 28 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 17 | 17 | 17 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -145 | -145 | -145 |
| Input Power per Port, maximum, watts | 80 | 80 | 80 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 432.0 N @ 150 km/h (97.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 219.0 N @ 150 km/h (49.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 650.0 N @ 150 km/h (146.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 276.0 N @ 150 km/h (62.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Packaging and weights
| Width, packed | 530 mm | 20.866 in |
| Depth, packed | 349 mm | 13.740 in |
| Length, packed | 2020 mm | 79.528 in |
| Weight, gross | 52.7 kg | 116.183 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
