RRZZ-65B-R4N39V3
8-port sector antenna, 4x 694–960 and 4x 1427–2690, 65° HPBW, 4x RET
Features and benefits
- SEED® antenna providing high gain and improved efficiency (LookupValue_1605944368281793)
- High radiation and pattern efficiency for improved coverage area, capacity or reduced power consumption for a given area
- Reduces the amount of aluminum used to minimize CO2 release
- Innovative aerodynamic shape optimized for reduced wind loading in every direction
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |

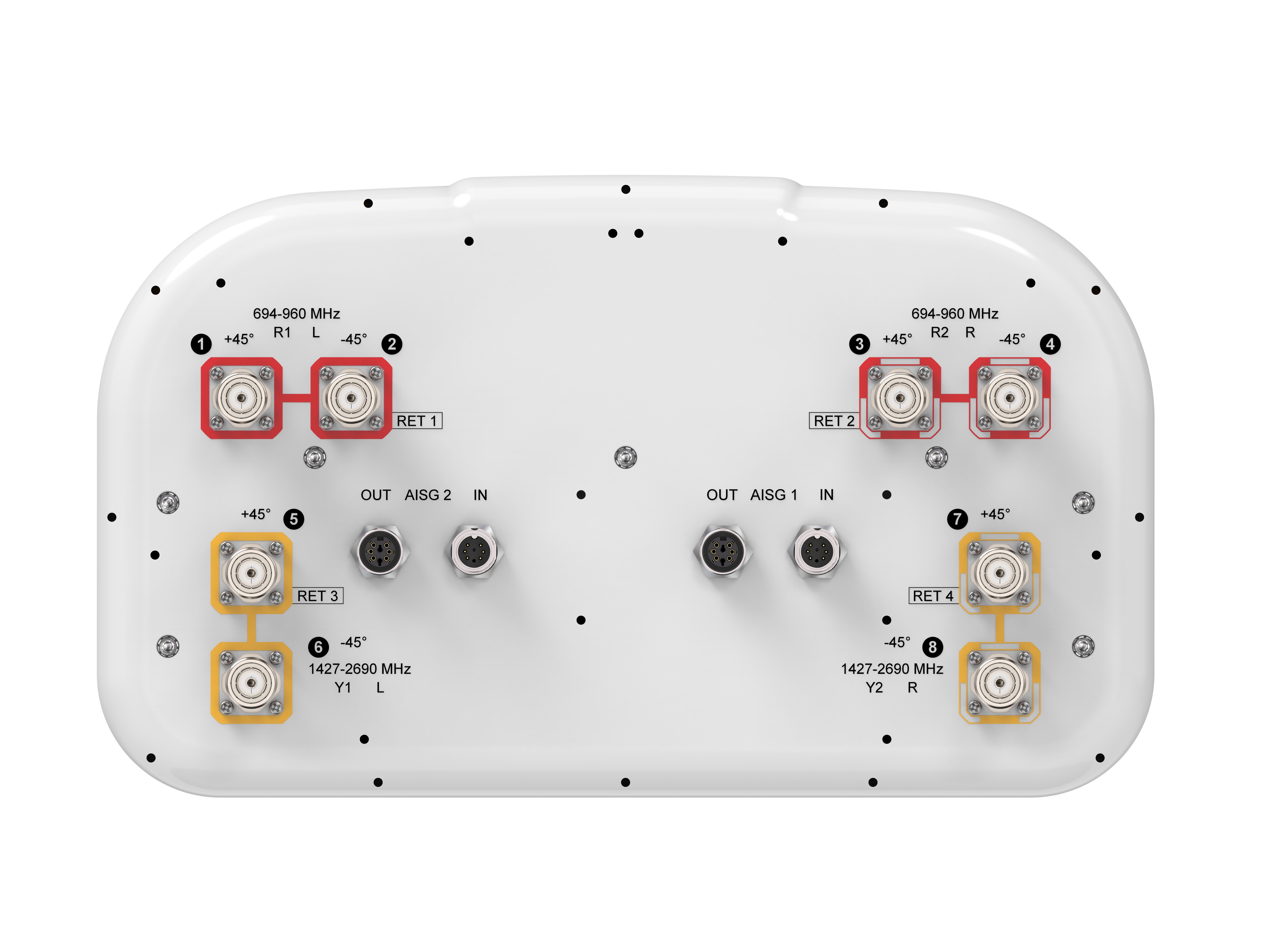

| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (2) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 395 mm | 15.551 in |
| Depth | 228 mm | 8.976 in |
| Length | 2100 mm | 82.677 in |
| Net Weight, without mounting kit | 31.7 kg | 69.886 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,100 W @ 50 °C |
Electrical specifications

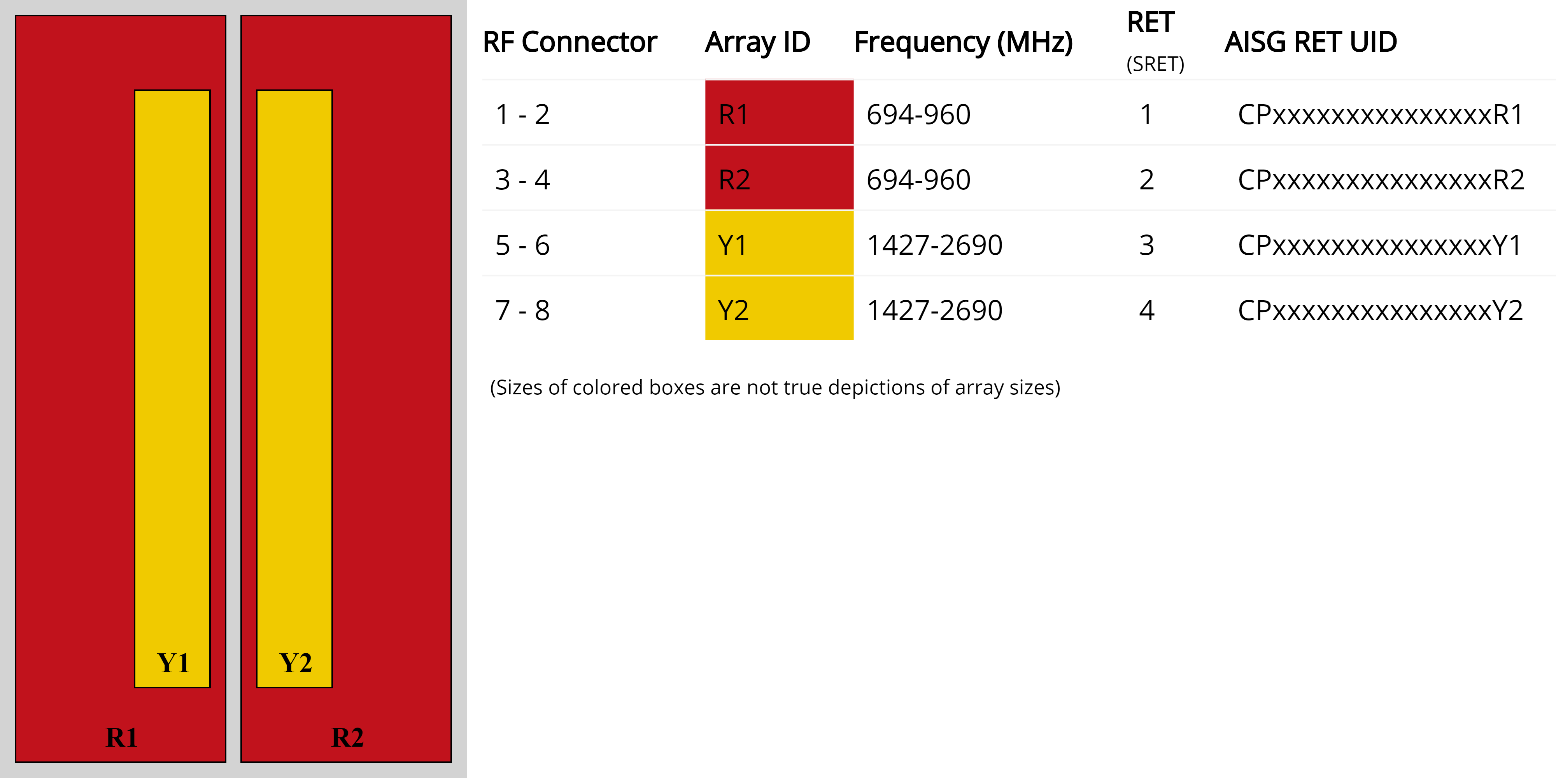

| R1,R2 | R1,R2 | R1,R2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 698–806 | 790–894 | 890–960 | 1427–1518 | 1695–1995 | 1920–2300 | 2300–2500 | 2490–2690 |
| RF Port | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 5,6,7,8 | 5,6,7,8 | 5,6,7,8 | 5,6,7,8 | 5,6,7,8 |
| Gain at Mid Tilt, dBi | 14.3 | 15.1 | 15.4 | 16.9 | 18.3 | 18.6 | 19.5 | 19.3 |
| Beamwidth, Horizontal, degrees | 73 | 61 | 56 | 60 | 60 | 63 | 56 | 62 |
| Beamwidth, Vertical, degrees | 10.3 | 9.3 | 8.6 | 7.1 | 5.9 | 5.2 | 4.4 | 4 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 14 | 15 | 14 | 18 | 18 | 14 | 16 |
| Front-to-Back Ratio at 180°, dB | 29 | 28 | 26 | 33 | 36 | 36 | 35 | 34 |
| Front-to-Back Total Power at 180° ± 30°, dB | 19 | 20 | 19 | 24 | 26 | 26 | 27 | 24 |
| CPR at Boresight, dB | 22 | 24 | 20 | 18 | 22 | 22 | 19 | 20 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 26 | 26 | 26 | 26 | 26 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 | 250 | 250 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 320.0 N @ 150 km/h (71.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 288.0 N @ 150 km/h (64.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 643.0 N @ 150 km/h (144.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 366.0 N @ 150 km/h (82.3 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 505 mm | 19.882 in |
| Depth, packed | 386 mm | 15.197 in |
| Length, packed | 2243 mm | 88.307 in |
| Weight, gross | 42.9 kg | 94.578 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (2) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 395 mm | 15.551 in |
| Depth | 228 mm | 8.976 in |
| Length | 2100 mm | 82.677 in |
| Net Weight, without mounting kit | 31.7 kg | 69.886 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,100 W @ 50 °C |
Electrical specifications
| R1,R2 | R1,R2 | R1,R2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 698–806 | 790–894 | 890–960 | 1427–1518 | 1695–1995 | 1920–2300 | 2300–2500 | 2490–2690 |
| RF Port | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 5,6,7,8 | 5,6,7,8 | 5,6,7,8 | 5,6,7,8 | 5,6,7,8 |
| Gain at Mid Tilt, dBi | 14.3 | 15.1 | 15.4 | 16.9 | 18.3 | 18.6 | 19.5 | 19.3 |
| Beamwidth, Horizontal, degrees | 73 | 61 | 56 | 60 | 60 | 63 | 56 | 62 |
| Beamwidth, Vertical, degrees | 10.3 | 9.3 | 8.6 | 7.1 | 5.9 | 5.2 | 4.4 | 4 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 14 | 15 | 14 | 18 | 18 | 14 | 16 |
| Front-to-Back Ratio at 180°, dB | 29 | 28 | 26 | 33 | 36 | 36 | 35 | 34 |
| Front-to-Back Total Power at 180° ± 30°, dB | 19 | 20 | 19 | 24 | 26 | 26 | 27 | 24 |
| CPR at Boresight, dB | 22 | 24 | 20 | 18 | 22 | 22 | 19 | 20 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 26 | 26 | 26 | 26 | 26 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 | 250 | 250 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 320.0 N @ 150 km/h (71.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 288.0 N @ 150 km/h (64.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 643.0 N @ 150 km/h (144.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 366.0 N @ 150 km/h (82.3 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 505 mm | 19.882 in |
| Depth, packed | 386 mm | 15.197 in |
| Length, packed | 2243 mm | 88.307 in |
| Weight, gross | 42.9 kg | 94.578 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
