RRZZHHTT65AR6MR

16-port sector antenna, 4x 694–960, 4x 1427–2690, 4x 1695-2180 and 4x 2490-2690 MHz, 65° HPBW, 6x RET

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios (Supports_r)
New endcap designs provide improved wind loading performance
All internal RET actuators are connected in “Cascaded MRET” configuration

Specifications

General specifications

Antenna Type	Sector
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum

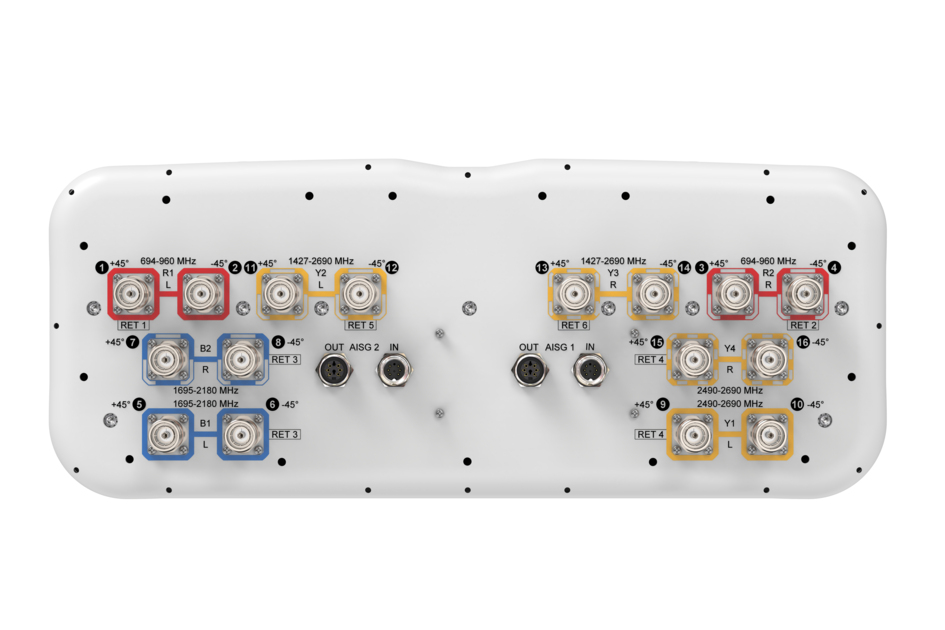

RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	12
RF Connector Quantity, low band	4
RF Connector Quantity, total	16

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
Input Voltage	10–30 Vdc
Internal RET	Low band (2) \| Mid band (4)
Power Consumption, active state, maximum	8 W
Power Consumption, idle state, maximum	1 W
Protocol	3GPP/AISG 2.0 (Multi-RET)

Click on image to enlarge.

Click on image to enlarge.

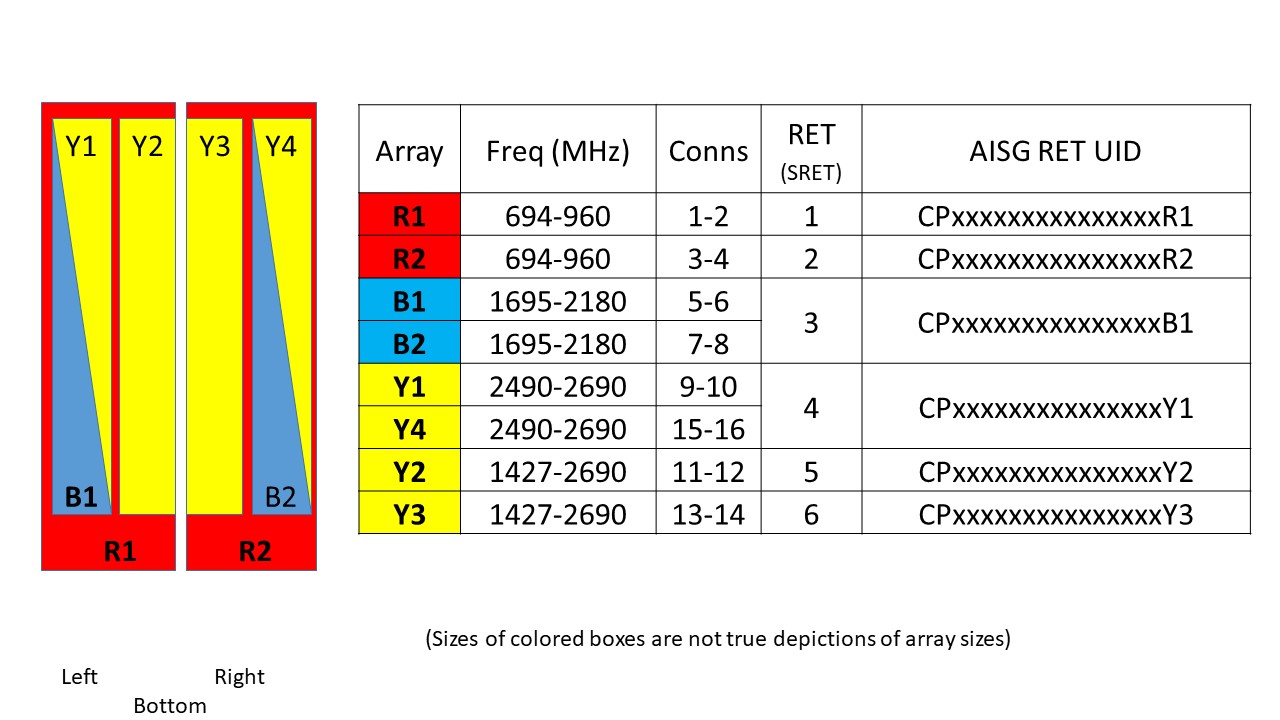

	R1,R2	R1,R2	R1,R2	B1,B2	Y1,Y4	Y2,Y3	Y2,Y3	Y2,Y3
Frequency Band, MHz	694–790	790–890	890–960	1695–2180	2490–2690	1427–1518	1695–2180	2300–2690
RF Port	1-4	1-4	1-4	5-8	9,10,15,16	11-14	11-14	11-14
Gain, dBi	13.2	13.5	13.7	16.9	17.8	15.3	17.4	18.3
Beamwidth, Horizontal, degrees	70	68	64	68	56	69	63	58
Beamwidth, Vertical, degrees	16.8	14.9	13.9	6.6	5.2	8.8	6.8	5.2
Beam Tilt, degrees	2–16	2–16	2–16	2–12	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	16	15	17	19	18	17	16	20
Front-to-Back Ratio at 180°, dB	30	28	28	31	29	33	32	34
CPR at Boresight, dB	23	20	20	19	20	14	18	19
Isolation, Cross Polarization, dB	27	27	27	27	27	26	26	26
Isolation, Inter-band, dB	27	27	27	27	27	27	27	27
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150	-150	-150
Input Power per Port at 50°C, maximum, watts	300	300	300	250	150	250	250	200

Effective Projective Area (EPA), frontal	0.47 m² \| 5.059 ft²
Effective Projective Area (EPA), lateral	0.14 m² \| 1.507 ft²
Wind Loading @ Velocity, frontal	503.0 N @ 150 km/h (113.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	150.0 N @ 150 km/h (33.7 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	604.0 N @ 150 km/h (135.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	346.0 N @ 150 km/h (77.8 lbf @ 150 km/h)
Wind Speed, maximum	288 km/h (179 mph)

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted

Antenna Type	Sector
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	12
RF Connector Quantity, low band	4
RF Connector Quantity, total	16

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
Input Voltage	10–30 Vdc
Internal RET	Low band (2) \| Mid band (4)
Power Consumption, active state, maximum	8 W
Power Consumption, idle state, maximum	1 W
Protocol	3GPP/AISG 2.0 (Multi-RET)

	R1,R2	R1,R2	R1,R2	B1,B2	Y1,Y4	Y2,Y3	Y2,Y3	Y2,Y3
Frequency Band, MHz	694–790	790–890	890–960	1695–2180	2490–2690	1427–1518	1695–2180	2300–2690
RF Port	1-4	1-4	1-4	5-8	9,10,15,16	11-14	11-14	11-14
Gain, dBi	13.2	13.5	13.7	16.9	17.8	15.3	17.4	18.3
Beamwidth, Horizontal, degrees	70	68	64	68	56	69	63	58
Beamwidth, Vertical, degrees	16.8	14.9	13.9	6.6	5.2	8.8	6.8	5.2
Beam Tilt, degrees	2–16	2–16	2–16	2–12	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	16	15	17	19	18	17	16	20
Front-to-Back Ratio at 180°, dB	30	28	28	31	29	33	32	34
CPR at Boresight, dB	23	20	20	19	20	14	18	19
Isolation, Cross Polarization, dB	27	27	27	27	27	26	26	26
Isolation, Inter-band, dB	27	27	27	27	27	27	27	27
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150	-150	-150
Input Power per Port at 50°C, maximum, watts	300	300	300	250	150	250	250	200

Effective Projective Area (EPA), frontal	0.47 m² \| 5.059 ft²
Effective Projective Area (EPA), lateral	0.14 m² \| 1.507 ft²
Wind Loading @ Velocity, frontal	503.0 N @ 150 km/h (113.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	150.0 N @ 150 km/h (33.7 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	604.0 N @ 150 km/h (135.8 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	346.0 N @ 150 km/h (77.8 lbf @ 150 km/h)
Wind Speed, maximum	288 km/h (179 mph)

Click on image to enlarge.

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
