RZZ-65B-R3V6G

6-port sector antenna, 2x 694-960 and 4x 1427- 2690 MHz, 65° HPBW, 3x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • High radiation and pattern efficiency for improved coverage area, capacity or reduced power consumption for a given area
  • Reduces the amount of aluminum used to minimize CO2 release
  • SEED® antenna providing high gain and improved efficiency (LookupValue_1605944368281793)
  • Retractable tilt indicator rods
  • Includes integrated GPS (APS-XT-GPS)

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.780 in
Depth 208 mm | 8.189 in
Length 2000 mm | 78.740 in
Net Weight, without mounting kit 21.8 kg | 48.061 lb

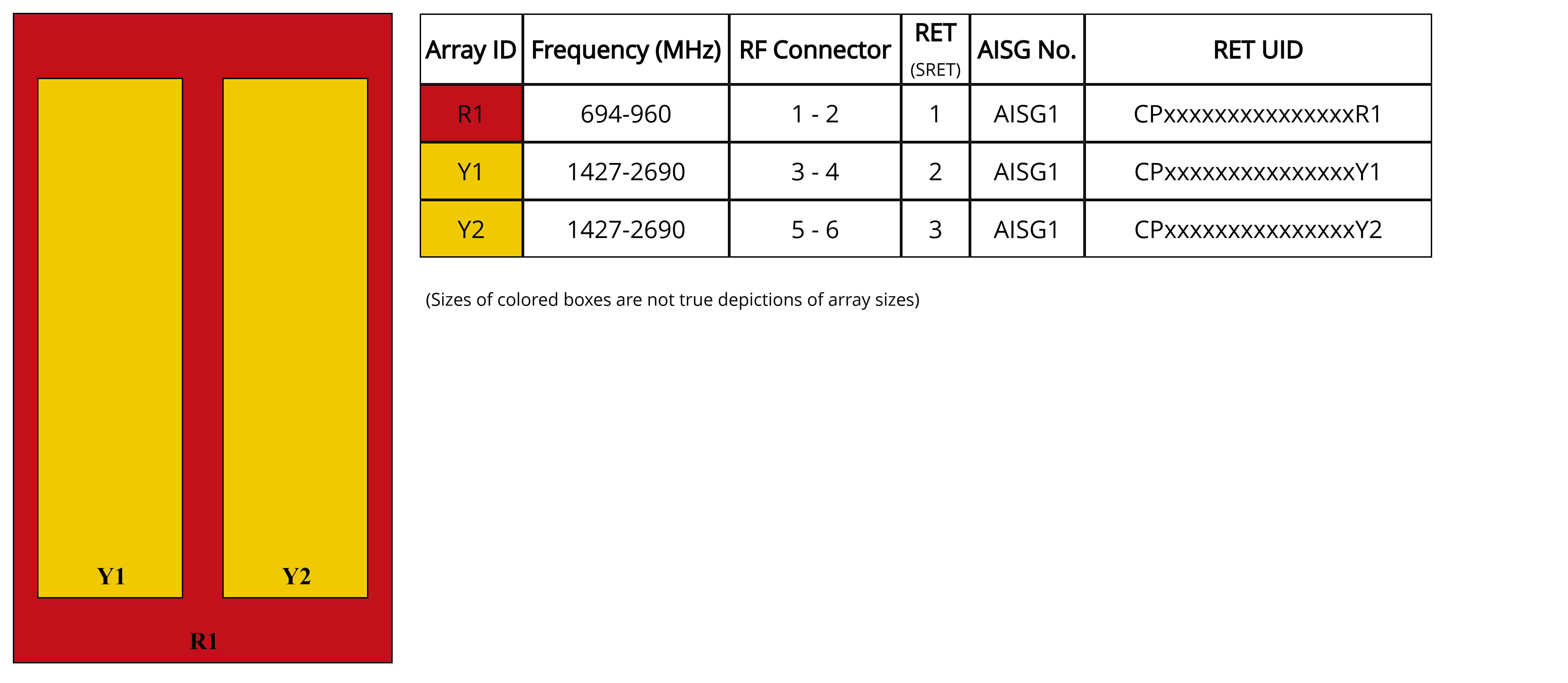

Array layout

Click on image to enlarge.

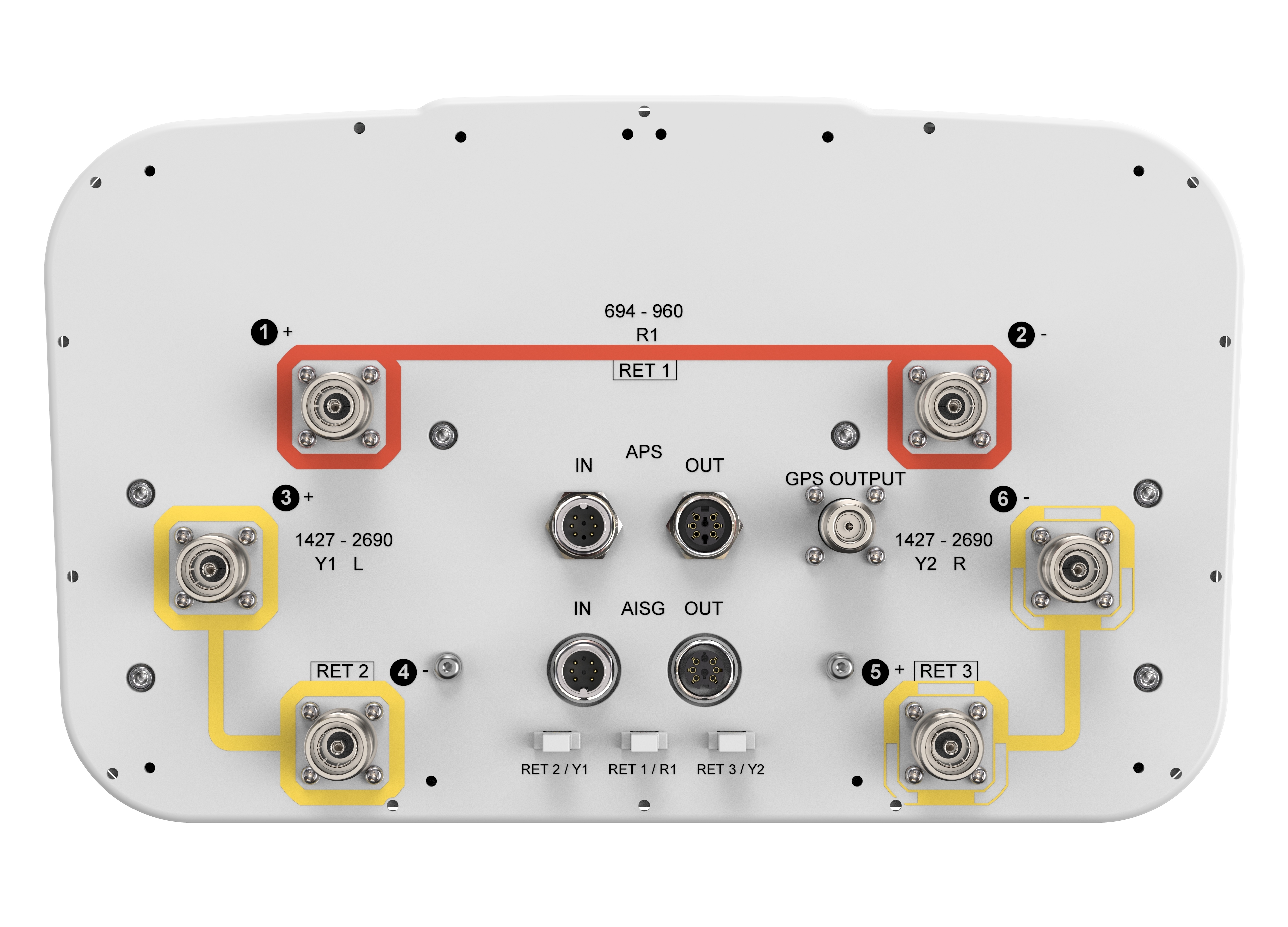

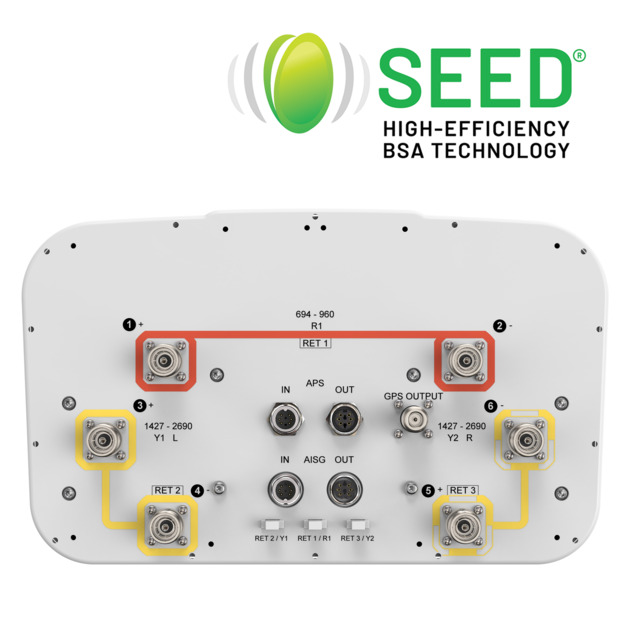

Port configuration

Click on image to enlarge.

Logo image

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1 R1 R1 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2
Frequency Band, MHz 698–806 790–894 890–960 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1-2 1-2 1-2 3-6 3-6 3-6 3-6 3-6
Gain at Mid Tilt, dBi 15.9 16.5 16.8 17.1 18.7 19.1 19.5 19.5
Beamwidth, Horizontal, degrees 69 65 64 68 61 60 60 61
Beamwidth, Vertical, degrees 11 10.2 9.4 7.4 6.2 5.5 4.9 4.5
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 17 18 18 23 21 17 17
Front-to-Back Ratio at 180°, dB 28 30 30 31 34 32 34 34
Front-to-Back Total Power at 180° ± 30°, dB 20 22 22 25 28 27 29 29
CPR at Boresight, dB 18 20 23 17 20 19 20 21
Isolation, Cross Polarization, dB 27 27 27 26 26 26 26 26
Isolation, Inter-band, dB 27 27 27 26 26 26 26 26
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200 200

Mechanical specifications

Wind Loading @ Velocity, frontal 335.0 N @ 150 km/h (75.3 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 283.0 N @ 150 km/h (63.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 709.0 N @ 150 km/h (159.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 355.0 N @ 150 km/h (79.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 2147 mm | 84.528 in
Weight, gross 31.4 kg | 69.225 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 6

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (1) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.780 in
Depth 208 mm | 8.189 in
Length 2000 mm | 78.740 in
Net Weight, without mounting kit 21.8 kg | 48.061 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1 R1 R1 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2
Frequency Band, MHz 698–806 790–894 890–960 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1-2 1-2 1-2 3-6 3-6 3-6 3-6 3-6
Gain at Mid Tilt, dBi 15.9 16.5 16.8 17.1 18.7 19.1 19.5 19.5
Beamwidth, Horizontal, degrees 69 65 64 68 61 60 60 61
Beamwidth, Vertical, degrees 11 10.2 9.4 7.4 6.2 5.5 4.9 4.5
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 17 18 18 23 21 17 17
Front-to-Back Ratio at 180°, dB 28 30 30 31 34 32 34 34
Front-to-Back Total Power at 180° ± 30°, dB 20 22 22 25 28 27 29 29
CPR at Boresight, dB 18 20 23 17 20 19 20 21
Isolation, Cross Polarization, dB 27 27 27 26 26 26 26 26
Isolation, Inter-band, dB 27 27 27 26 26 26 26 26
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200 200

Mechanical specifications

Wind Loading @ Velocity, frontal 335.0 N @ 150 km/h (75.3 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 283.0 N @ 150 km/h (63.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 709.0 N @ 150 km/h (159.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 355.0 N @ 150 km/h (79.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 2147 mm | 84.528 in
Weight, gross 31.4 kg | 69.225 lb
Click on image to enlarge.
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant
