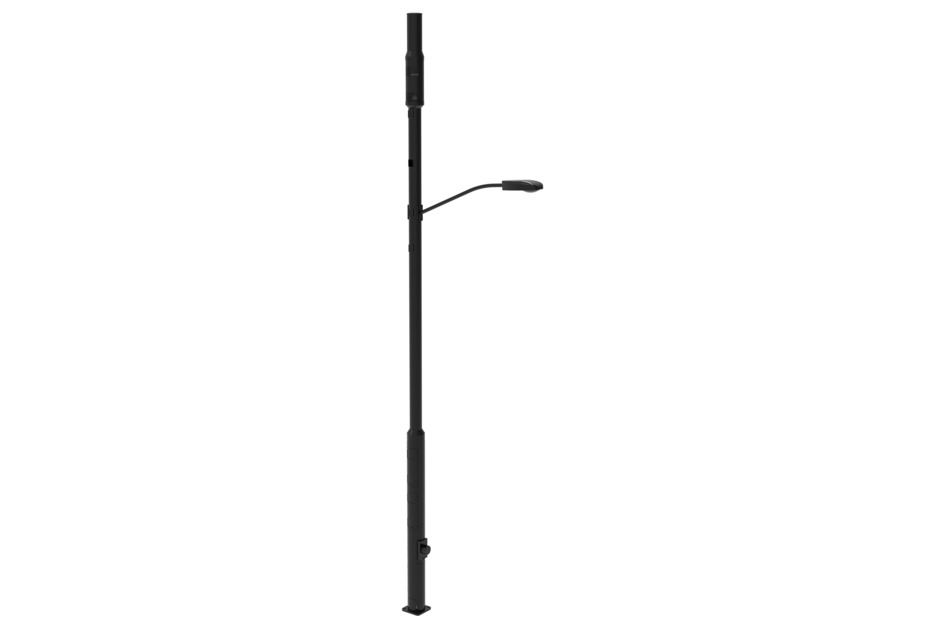

760239237 | 12" Pole Base 4G/5G, Round
Round 12 inch diameter, Integrated Pole Base Concealment Pole for 4G/5G deployments, to house and conceal multiple radios and any other wireless infrastructure equipment in the base of the pole.
Features and benefits
Available After Market Kits, ordered separately:
-860668762- AMK-001 for mounting Ericsson 4435 Radio
ANDREW Cap H Requires additional Radio Module, ordered separately:
-MTM1029-2000-xx Cap H Radio Module for 12” Integrated Poles
-860668762- AMK-001 for mounting Ericsson 4435 Radio
ANDREW Cap H Requires additional Radio Module, ordered separately:
-MTM1029-2000-xx Cap H Radio Module for 12” Integrated Poles
- Intended to house and conceal multiple radios and any other wireless infrastructure equipment in a cabinet at the base of the pole
- Includes everything needed for a low-power 4G/5G outdoor small cell site
- Pole top concealment module for LAA/CBRS radio mounting
- Base of 12in diameter accepts up to (4) low power radios
- Concealment integrates AC load load center/OVP and disconnect
Specifications
Product classification
| Product Type | Integrated pole |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | ANDREW Canister Antennas |
| Antenna Compatibility, Other Vendors | ACE | AMPHENOL | GALTRONICS | GAMMA NU | JMA | KATHREIN | KMW | ROSENBERGER |
| Antennas Included | None |
| Color | Light Gray (RAL 7035) |
| Color Options | Beige-Grey (RAL 7006) | Black (RAL 9005) | Black Green (RAL 6012) | Brown (RAL 8014) | Faux Concrete | Green (RAL 6005) | Metallic Silver | White (RAL 9010) |
| Compatible Foundation Type | Poured Concrete | Pre-Cast Concrete |
| Compatible Smart Devices | Cameras | Digital Signage | Emergency Call Station | Environmental Monitoring | Security Lighting | WIFI |
| Cooling | Passive Cooling |
| Radio Compatibility, ANDREW | CAP H |
| Radio Compatibility, Ericsson | (3) 2205/2208 (Pole Top) | (4) 2203 (radio concealment module) | 220x | 440x | 4435 | 6701 | 6705 |
| Radio Compatibility, Nokia | (2) Airscale Micro Radios - LAA & CBRS (Pole Top) | (2) Airscale micro radios – (radio concealment module) | AHIA | AHIB | AZRB | Airscale micro |
| Radios Included | None |
Dimensions
| Height Note | 5 ft tall Equipment Base | 5.5 ft tall Radio Concealment Module |
| Pole Height Options | 6.096 m | 20 ft | 7.62 m | 25 ft | 9.144 m | 30 ft | 10.668 m | 35 ft | 12.192 m | 40 ft |
| Depth | 325.12 mm | 12.8 in |
| Depth Note | Round |
| Pole Diameter | 203.2 mm | 8 in |
Electrical specifications
| Power/Fiber Input | AC load center with OVP and disconnect |
Material specifications
| Finish Aluminum | Chromate |
| Finish Concealment Covers | Powder coated |
| Material Type | Steel |
Environmental specifications
| Thermal Compliance | GR-487 |
