SSC-760254722

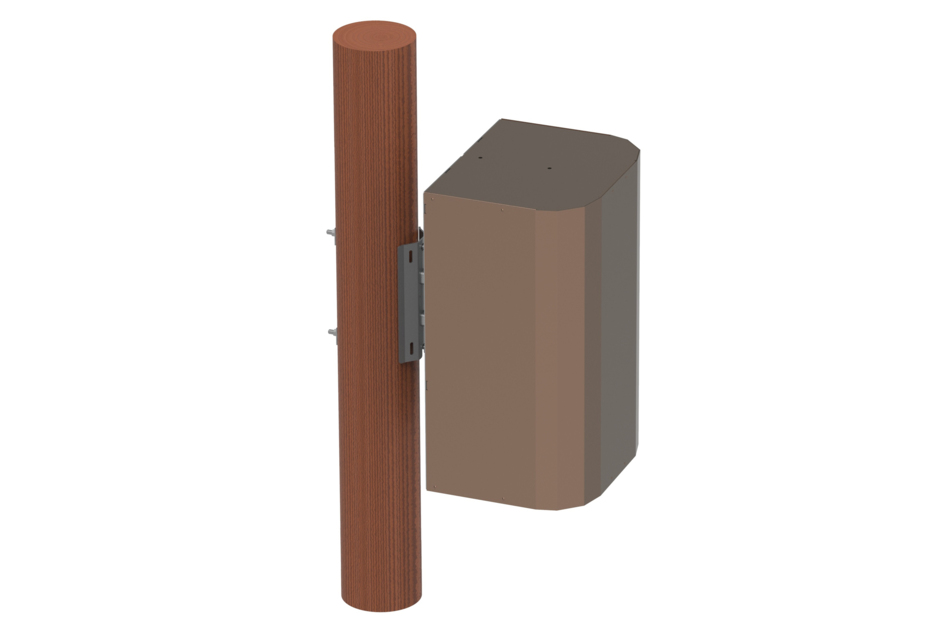

Wood Pole Bracket for Nokia AZHL & AHFIB Dual Band Radio and APAM Rectifier -Shrouded
Features and benefits
Power support units located outside shroud.
Specifications
Product classification
| Product Type | Wood pole brackets |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Color | Brown |
| Color Options | Brown (RAL 8014) |
| Cooling | Passive Cooling |
| Mounting Options | Wood poles |
| Power Supply Compatibility | APAM |
| Radio Compatibility, Nokia | AHFIB | AZHL | Diplexer | POD-8 |
| Radios Included | None |
Dimensions
| Height | 894.080 mm | 35.2 in |
| Width | 563.880 mm | 22.2 in |
| Depth | 462.280 mm | 18.2 in |
Material specifications
| Finish | Powder coated |
| Finish Concealment Covers | Powder coated |
| Material Type | Aluminum | Galvanized steel |
Environmental specifications
| Thermal Compliance | GR-487 |
Packaging and weights
| Weight (unloaded) | 41.730 kg | 92 lb |
Product classification
| Product Type | Wood pole brackets |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Color | Brown |
| Color Options | Brown (RAL 8014) |
| Cooling | Passive Cooling |
| Mounting Options | Wood poles |
| Power Supply Compatibility | APAM |
| Radio Compatibility, Nokia | AHFIB | AZHL | Diplexer | POD-8 |
| Radios Included | None |
Dimensions
| Height | 894.080 mm | 35.2 in |
| Width | 563.880 mm | 22.2 in |
| Depth | 462.280 mm | 18.2 in |
Material specifications
| Finish | Powder coated |
| Finish Concealment Covers | Powder coated |
| Material Type | Aluminum | Galvanized steel |
Environmental specifications
| Thermal Compliance | GR-487 |
Packaging and weights
| Weight (unloaded) | 41.730 kg | 92 lb |
