460203513
- Available in:
- North America

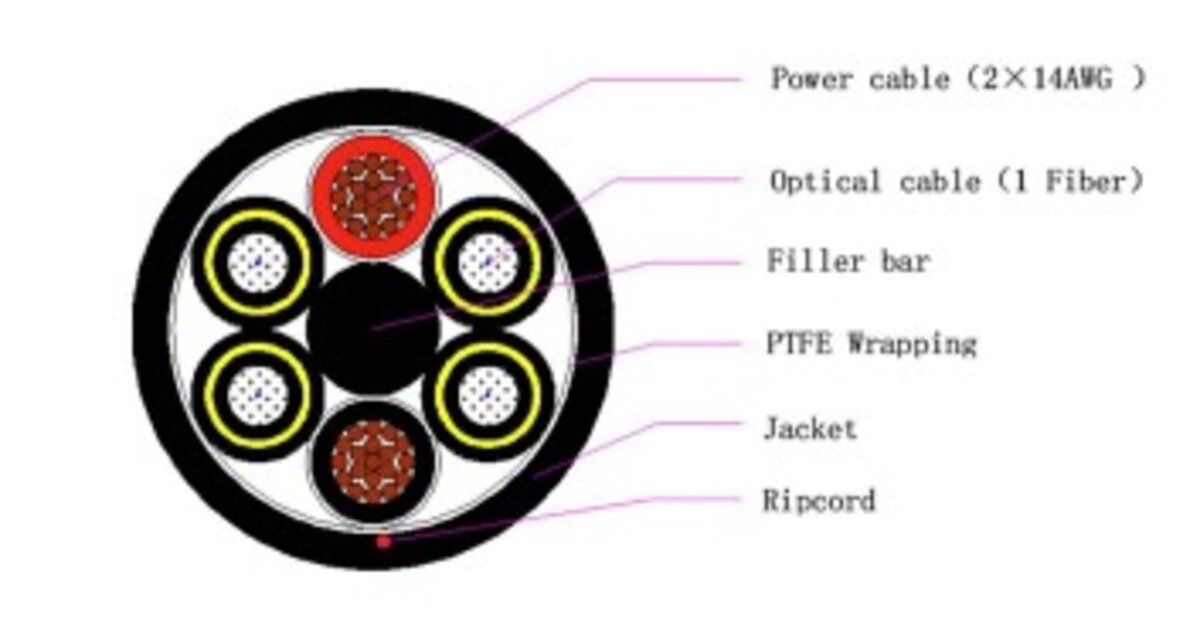

HELIAX® Hybrid Cable, 4SM fibers, 2 x 14AWG conductors red/black, Plenum, FT6, CMP
Specifications
Product classification
| Regional Availability | North America |
| Product Type | Hybrid cable, copper and fiber |
| Product Brand | HELIAX® |
General specifications
| Cable Type | Hybrid fiber |
| Conductors, quantity | 2 |
| Jacket Color | Black |
| Subunit, quantity | 4 |
| Fibers per Subunit, quantity | 1 |
| Total Fiber Count | 4 |
Dimensions
| Diameter Over Jacket | 10.900 mm | 0.429133858 in |
| Conductor Gauge | 14 AWG |
Electrical specifications
| dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| dc Resistance, maximum | 8.629 ohms/km | 2.63 ohms/kft |
Material specifications
| Conductor Material | Bare copper |
| Jacket Material | PVC |
| Inner Jacket Material | PVC |
Optical specifications
| Fiber Type | G.657.A2 |
Environmental specifications
| Installation temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | ANSI/ICEA S-104-696 | Telcordia GR-20 | Telcordia GR-409 |
| Environmental Space | Plenum |
Product classification
| Regional Availability | North America |
| Product Type | Hybrid cable, copper and fiber |
| Product Brand | HELIAX® |
General specifications
| Cable Type | Hybrid fiber |
| Conductors, quantity | 2 |
| Jacket Color | Black |
| Subunit, quantity | 4 |
| Fibers per Subunit, quantity | 1 |
| Total Fiber Count | 4 |
Dimensions
| Diameter Over Jacket | 10.900 mm | 0.429133858 in |
| Conductor Gauge | 14 AWG |
Electrical specifications
| dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| dc Resistance, maximum | 8.629 ohms/km | 2.63 ohms/kft |
Material specifications
| Conductor Material | Bare copper |
| Jacket Material | PVC |
| Inner Jacket Material | PVC |
Optical specifications
| Fiber Type | G.657.A2 |
Environmental specifications
| Installation temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Cable Qualification Standards | ANSI/ICEA S-104-696 | Telcordia GR-20 | Telcordia GR-409 |
| Environmental Space | Plenum |
