MLOC-4-F1XM-NM-3M

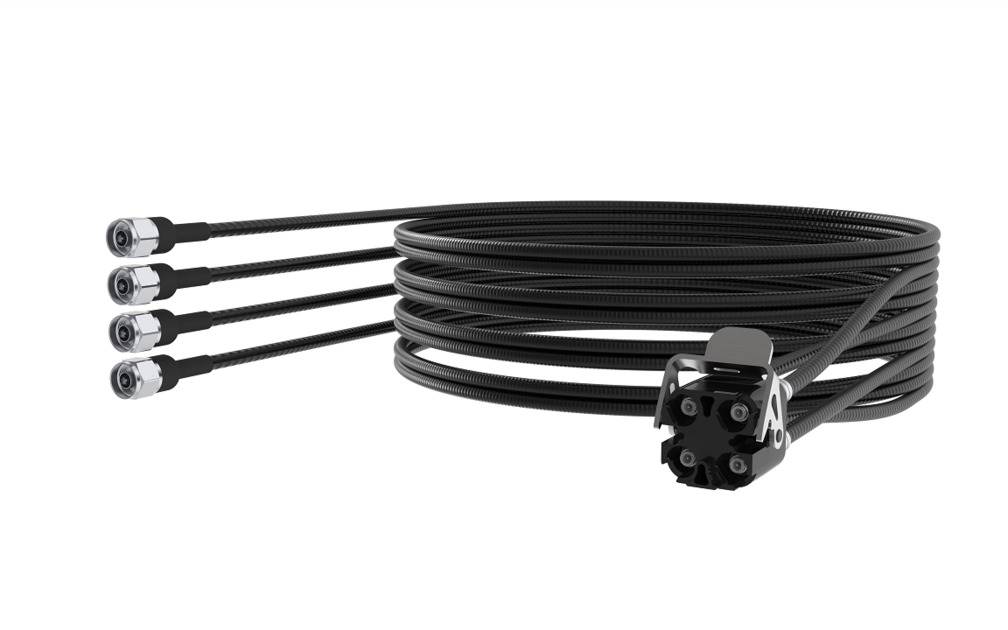

HELIAX® M-LOC Multiport cluster 4 ports SureFlex® cable assembly with interface type M-LOC latching male to N male,size 1/4", length 3 meters

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Port configuration

Click on image to enlarge.

Return loss/vswr

Frequency band Vswr Return loss (db) Insertion loss, typical (db)
1000–3000 MHz 1.135 24.00 1.18
3100–4200 MHz 1.222 20.00 1.42
4200–5000 MHz 1.253 19.00 1.56

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

Return loss/vswr

Frequency Band VSWR Return Loss (dB) Insertion Loss, typical (dB)
1000–3000 MHz 1.135 24.00 1.18
3100–4200 MHz 1.222 20.00 1.42
4200–5000 MHz 1.253 19.00 1.56
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
