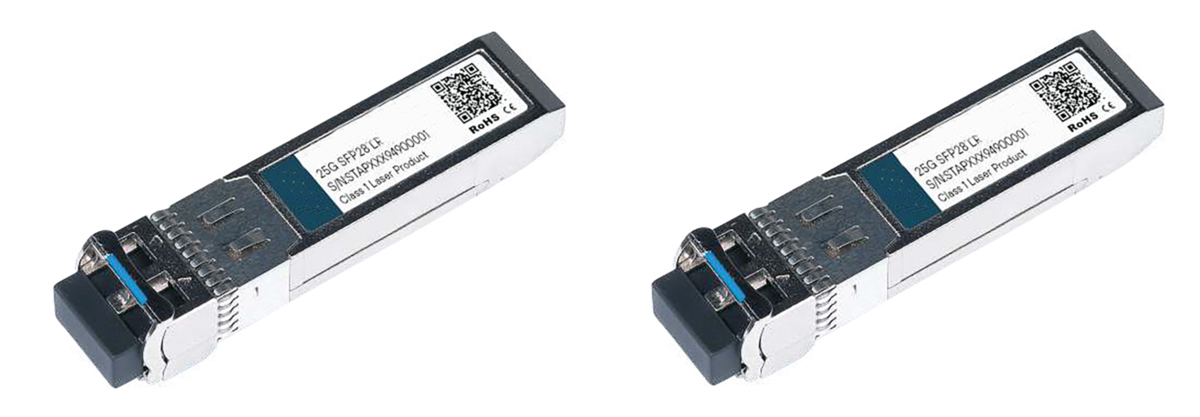

7865178 | SFP28-Kit BiDi (2 EA), up to 20 km
Kit of 2 Small Form Factor pluggable+ BiDi Modules, 25G BASE, up to 20 km
Features and benefits
- Single LC connector
- Hot-pluggable SFP footprint
- Uncooled DFB laser transmitter
- RoHS compliant and Lead Free
- Up to 20Km on 9/125um SMF
- Metal enclosure for lower EMI
Specifications
Product classification
| Product Type | Optical module |
| Product Series | BiDi SFP |
General specifications
| Interface | LC/UPC |
| Note | Detailed Product Specifications are available. Please contact your local ANDREW representative. |
Optical specifications
| Fiber Type | 9/125 µm, singlemode |
| Average Optical Output Power, maximum | 2 dBm |
| Average Optical Output Power, minimum | -2 dBm |
| Operating Wavelength | 1270 nm (Rx) | 1270 nm (Tx) | 1330 nm (Rx) | 1330 nm (Tx) |
| Receiver Sensitivity, maximum | -13.5 dBm |
| Receiver Overload | +2 dBm |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
Packaging and weights
| Height, packed | 40 mm | 1.575 in |
| Width, packed | 105 mm | 4.134 in |
| Depth, packed | 65 mm | 2.559 in |
| Packaging quantity | 1 |
| Packaging Type | Box |
| Weight, gross | 0.076 kg | 0.168 lb |
| Weight, net | 0.044 kg | 0.097 lb |
Product classification
| Product Type | Optical module |
| Product Series | BiDi SFP |
General specifications
| Interface | LC/UPC |
| Note | Detailed Product Specifications are available. Please contact your local ANDREW representative. |
Optical specifications
| Fiber Type | 9/125 µm, singlemode |
| Average Optical Output Power, maximum | 2 dBm |
| Average Optical Output Power, minimum | -2 dBm |
| Operating Wavelength | 1270 nm (Rx) | 1270 nm (Tx) | 1330 nm (Rx) | 1330 nm (Tx) |
| Receiver Sensitivity, maximum | -13.5 dBm |
| Receiver Overload | +2 dBm |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
Packaging and weights
| Height, packed | 40 mm | 1.575 in |
| Width, packed | 105 mm | 4.134 in |
| Depth, packed | 65 mm | 2.559 in |
| Packaging quantity | 1 |
| Packaging Type | Box |
| Weight, gross | 0.076 kg | 0.168 lb |
| Weight, net | 0.044 kg | 0.097 lb |
Documentation & downloads
Product specification
Product compliance documentation
Product specification
Related products & accessories
Included products
In-building
-
![]()

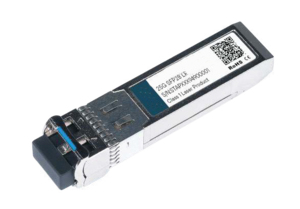

7865203 | SFP28, 25GBase BiDi 1270nmTx/1330nmRx, up to 20 km Small form factor pluggable+ BiDi Module, 25G BASE, up to 20 km -
![]()
