PS-INV-54DC-220AC | 760259736 (Inverter & Jumper Kit)

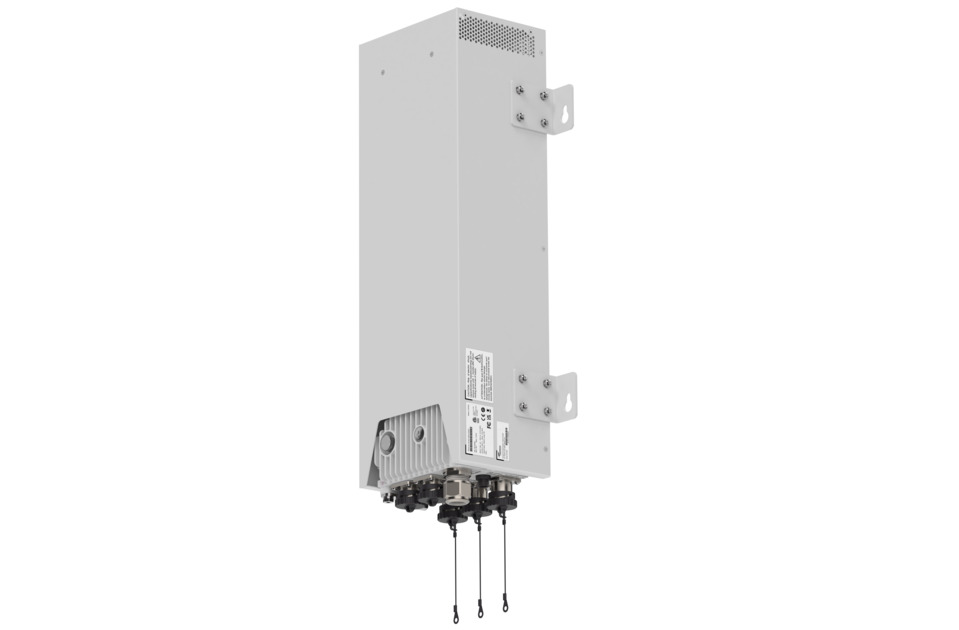

PowerShift Metro® 54VDC to 220VAC 1500W inverter, Small Cell Pole-Mounted

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
Features and benefits
The PowerShift® Inverter is designed to power 1 to 3 AC radios from a DC power source, delivering reliable performance in demanding environments.
  • Two connectorized inputs at nominal +/- 54 VDC (26A max per connection)
    • 2X Input – C10-730511-Z3S
  • Three connectorized outputs at a nominal 220 VAC, (3 x 10A inline fuse)
    • 3X Output – C10-730513-Z3S
  • Status LED: Green (ON), Yellow (alarm: UV/OV), Red (alarm: HW failure), OFF (No power)
  • Outdoor operation
  • Pole mounting bracket with 2 band clamps
  • RJ45 port for alarm connection

Product classification

Product Type Module
Product Brand PowerShift Metro®

General specifications

Input/Output Interface 2 input / 3 input

Dimensions

Height 489.458 mm | 19.27 in
Width 230.124 mm | 9.06 in
Depth 135.382 mm | 5.33 in

Electrical specifications

Input Power 1650 W
Input Power Connections, quantity 2
Input Voltage Range ±40 to ±58 Vdc
Input Voltage, nominal 54 Vdc
Output Current, nominal, ac 2.34 A
Output Power Connections, quantity 3
Output Voltage Range 213 to 227 Vac
Output Voltage, nominal, ac 220 V
Electrical Safety Standard CE | CSA C22.2 No. 60950-1-03 | IEC/EN 62368-1
Electromagnetic Compatibility/Interference (EMC/EMI) EN55024 | EN55032 | FCC Part 15 Class A | GR1089
Power Efficiency, nominal 91 %
Total Output Power 1500 W max combined for 3 outputs, 1250 W for single output

Environmental specifications

Operating Temperature -40 ºC to +65 ºC (-40 ºF to +149 ºF)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity 0%–95%, non-condensing
Mean Time Between Failures (MTBF) at Temperature 300,000 h @ 25 °C
Standards Compliance CE | EN 50581 | EN 62368-1 (LVD - Safety) | GR-1089-CORE | GR-487-CORE | UL/cUL 62368

Packaging and weights

Packaging quantity 1
Weight, net 8.800 kg | 19.4 lb

Product classification

Product Type Module
Product Brand PowerShift Metro®

General specifications

Input/Output Interface 2 input / 3 input

Dimensions

Height 489.458 mm | 19.27 in
Width 230.124 mm | 9.06 in
Depth 135.382 mm | 5.33 in

Electrical specifications

Input Power 1650 W
Input Power Connections, quantity 2
Input Voltage Range ±40 to ±58 Vdc
Input Voltage, nominal 54 Vdc
Output Current, nominal, ac 2.34 A
Output Power Connections, quantity 3
Output Voltage Range 213 to 227 Vac
Output Voltage, nominal, ac 220 V
Electrical Safety Standard CE | CSA C22.2 No. 60950-1-03 | IEC/EN 62368-1
Electromagnetic Compatibility/Interference (EMC/EMI) EN55024 | EN55032 | FCC Part 15 Class A | GR1089
Power Efficiency, nominal 91 %
Total Output Power 1500 W max combined for 3 outputs, 1250 W for single output

Environmental specifications

Operating Temperature -40 ºC to +65 ºC (-40 ºF to +149 ºF)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity 0%–95%, non-condensing
Mean Time Between Failures (MTBF) at Temperature 300,000 h @ 25 °C
Standards Compliance CE | EN 50581 | EN 62368-1 (LVD - Safety) | GR-1089-CORE | GR-487-CORE | UL/cUL 62368

Packaging and weights

Packaging quantity 1
Weight, net 8.800 kg | 19.4 lb
