F-CLAMP-B2-3B
Base product: CLAMP-SERIES-HANGER-BLOCKS

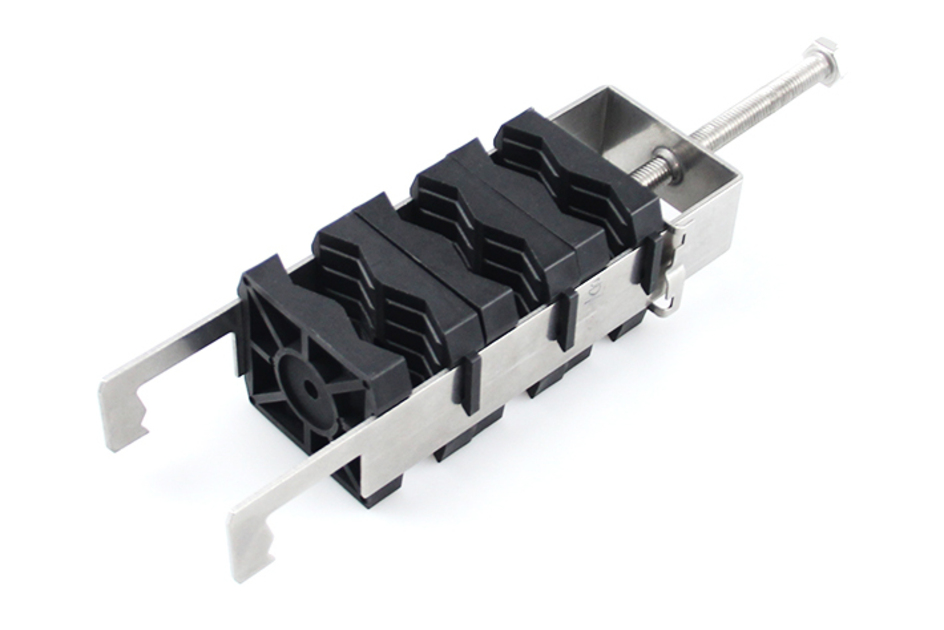

KwikClamp™ Hanger for power & fiber cables, two 7-22 mm holes (alongside each other), triple block; includes hardware
Specifications
Product classification
| Product Type | Hanger kit |
| Product Brand | KwikClamp™ |
| Ordering Note | ANDREW® standard product in Europe, the Middle East, and Africa | Minimum order quantity (MOQ) is 1 box |
General specifications
| Cables per Hanger | 2 |
| Color | Black |
| Hanger Type | KwikClamp™ hanger |
| Mounting | 3–25 mm angle iron | 3–25 mm flat plate | Round Member 8-25 mm |
Dimensions
| Maximum Stack Height | 3 |
| Height | 204 mm | 8.032 in |
| Width | 56 mm | 2.205 in |
| Length | 46 mm | 1.811 in |
| Compatible Cable Diameter Range | 7-22 mm |
| Compatible Diameter, maximum | 22 mm | 0.866 in |
| Compatible Diameter, minimum | 7 mm | 0.276 in |
| Hanger Spacing, maximum | 1.83 m | 6.004 ft |
Electrical specifications
| Return Loss Effect, maximum | 0.1 dB |
| DTF Effect, maximum | 0.1 dB |
Material specifications
| Material Type | Engineered plastic | Stainless steel |
Mechanical specifications
| Vibration Survival | ≥4 hours at resonant frequency |
Environmental specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Corrosion Resistance, minimum with no degredation | ≥500 hours in salt spray chamber |
| Environmental Strength Capability | Five times cable weight |
| UV Resistance, minimum with no degradation | ≥124 hours exposure in accelerated UV life chamber, testing duration 1344 hrs |
Packaging and weights
| Height, packed | 15.5 cm | 6.102 in |
| Width, packed | 30.5 cm | 12.008 in |
| Length, packed | 35.5 cm | 13.976 in |
| Included | Hardware |
| Packaging quantity | 18 |
| Weight, gross | 5.3 kg | 11.684 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Hanger kit |
| Product Brand | KwikClamp™ |
| Ordering Note | ANDREW® standard product in Europe, the Middle East, and Africa | Minimum order quantity (MOQ) is 1 box |
General specifications
| Cables per Hanger | 2 |
| Color | Black |
| Hanger Type | KwikClamp™ hanger |
| Mounting | 3–25 mm angle iron | 3–25 mm flat plate | Round Member 8-25 mm |
Dimensions
| Maximum Stack Height | 3 |
| Height | 204 mm | 8.032 in |
| Width | 56 mm | 2.205 in |
| Length | 46 mm | 1.811 in |
| Compatible Cable Diameter Range | 7-22 mm |
| Compatible Diameter, maximum | 22 mm | 0.866 in |
| Compatible Diameter, minimum | 7 mm | 0.276 in |
| Hanger Spacing, maximum | 1.83 m | 6.004 ft |
Electrical specifications
| Return Loss Effect, maximum | 0.1 dB |
| DTF Effect, maximum | 0.1 dB |
Material specifications
| Material Type | Engineered plastic | Stainless steel |
Mechanical specifications
| Vibration Survival | ≥4 hours at resonant frequency |
Environmental specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Corrosion Resistance, minimum with no degredation | ≥500 hours in salt spray chamber |
| Environmental Strength Capability | Five times cable weight |
| UV Resistance, minimum with no degradation | ≥124 hours exposure in accelerated UV life chamber, testing duration 1344 hrs |
Packaging and weights
| Height, packed | 15.5 cm | 6.102 in |
| Width, packed | 30.5 cm | 12.008 in |
| Length, packed | 35.5 cm | 13.976 in |
| Included | Hardware |
| Packaging quantity | 18 |
| Weight, gross | 5.3 kg | 11.684 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
