860677770-004
Base product: CUSTOM-PLATFORM-KITS

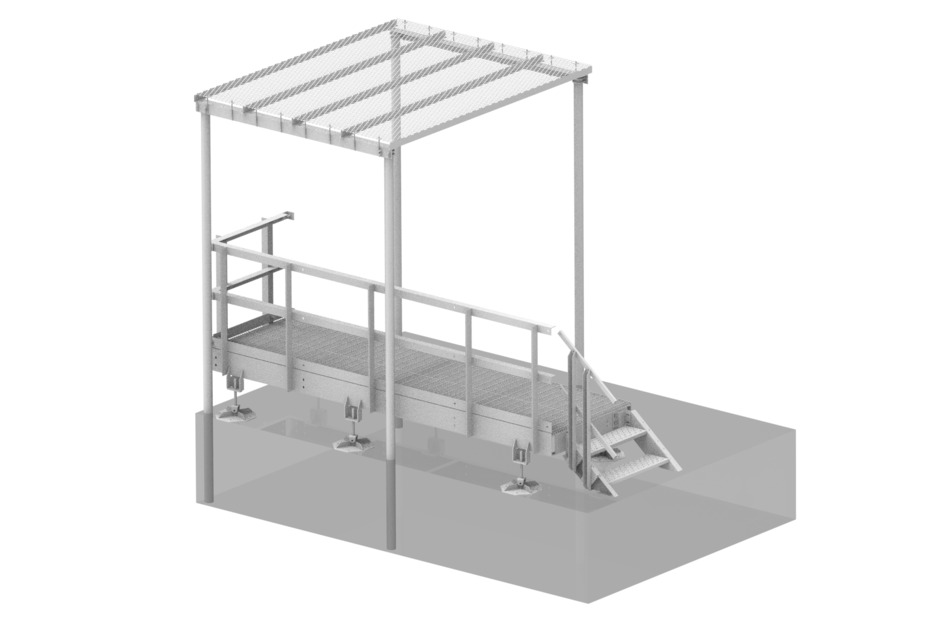

Custom Equipment Platform, 4' x 14' with handrail and 8' x 10' Ice Canopy
Specifications
Product classification
| Product Type | Equipment platform system |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Legs, quantity | 6 |
Dimensions
| Height | 4147.820 mm | 163.3 in |
| Width | 4267.200 mm | 168 in |
| Length | 1219.200 mm | 48 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Frame | Grating | Hardware | Ice shield | Legs | Rail |
| Packaging quantity | 1 |
| Weight, net | 1025.39 kg | 2260.595 lb |
Product classification
| Product Type | Equipment platform system |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Legs, quantity | 6 |
Dimensions
| Height | 4147.820 mm | 163.3 in |
| Width | 4267.200 mm | 168 in |
| Length | 1219.200 mm | 48 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Frame | Grating | Hardware | Ice shield | Legs | Rail |
| Packaging quantity | 1 |
| Weight, net | 1025.39 kg | 2260.595 lb |
