860685851-0613-63
Base product: ROOFTOP-MOUNTS-AND-ACCESSORIES

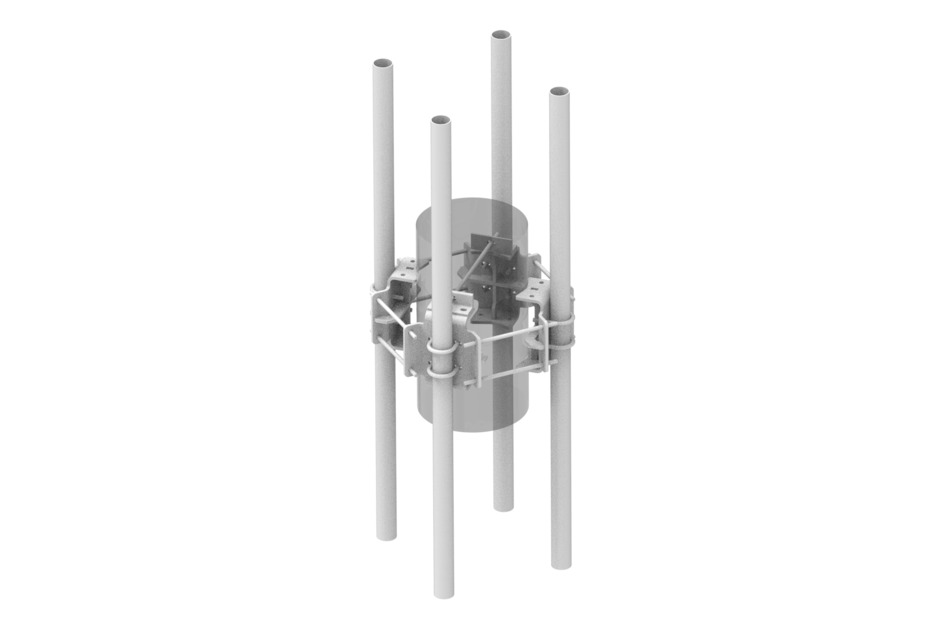

4-Sector Pole Mount Kit for 6"-13" OD Poles with (4) 63" Pipes
Specifications
Product classification
| Product Type | Mounting collar |
| Warranty | One year |
General specifications
| Mounting | Round member |
| Pipe, quantity | 4 |
Dimensions
| Height | 101.6 mm |
| Width | 330.2 mm |
| Length | 0.335 m |
| Pipe Length | 1600.200 mm | 63 in |
| Mounting Diameter, maximum | 330.200 mm | 13 in |
| Mounting Diameter, minimum | 152.400 mm | 6 in |
| Pipe Outer Diameter | 60.960 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets | Plain end pipes | Threaded rod |
| Packaging quantity | 1 |
Product classification
| Product Type | Mounting collar |
| Warranty | One year |
General specifications
| Mounting | Round member |
| Pipe, quantity | 4 |
Dimensions
| Height | 101.6 mm |
| Width | 330.2 mm |
| Length | 0.335 m |
| Pipe Length | 1600.200 mm | 63 in |
| Mounting Diameter, maximum | 330.200 mm | 13 in |
| Mounting Diameter, minimum | 152.400 mm | 6 in |
| Pipe Outer Diameter | 60.960 mm | 2.4 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Brackets | Plain end pipes | Threaded rod |
| Packaging quantity | 1 |
