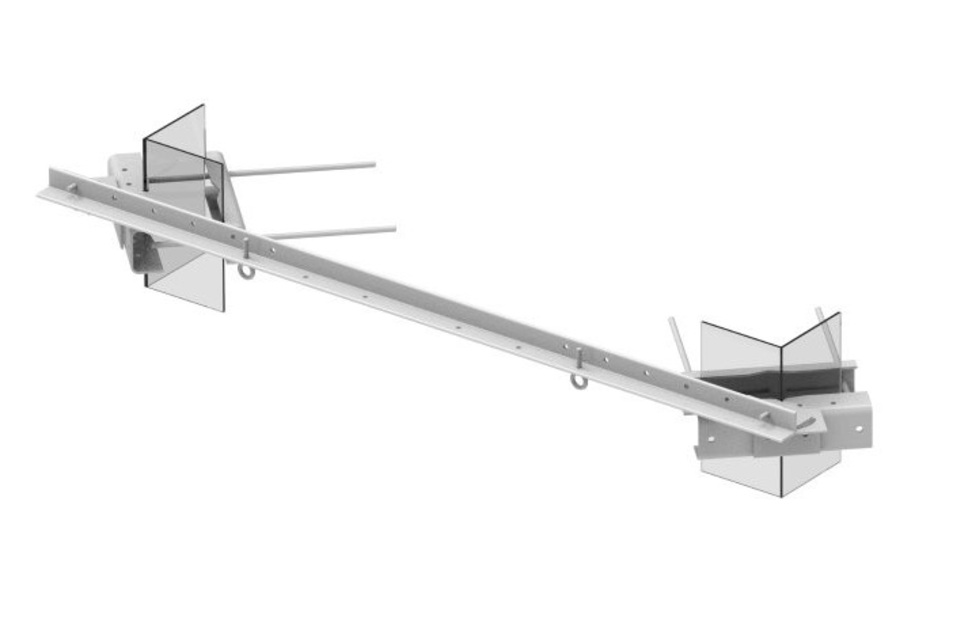

860689555-U-L
Base product: HOISTING-GRIP-ANCHORS
Cable Support Mount for Guyed & Self-Support Towers to Support Cable, for Large Tower Leg
Features and benefits
The "860689555-U-L" is a purpose built tower face bracket that is designed to support 750 pounds of cable per eye up to 1500 pounds in combination. Ideal for Hybrid cable. Includes mounting eye bolts for attachment.
-Product is designed to be field installed as needed on tower legs and across the tower face to provide an engineered attachment point for the support of cables.
-Mounts to Round Legs up to 16", 60 degree Angles up to 16" and 90 degree angles up to 12".
-Additional units can be installed along the tower face as needed to support additional cables.
-Not to be used for hoisting.
-Competent person to make determination of usage on the structure.
-Product is designed to be field installed as needed on tower legs and across the tower face to provide an engineered attachment point for the support of cables.
-Mounts to Round Legs up to 16", 60 degree Angles up to 16" and 90 degree angles up to 12".
-Additional units can be installed along the tower face as needed to support additional cables.
-Not to be used for hoisting.
-Competent person to make determination of usage on the structure.
Specifications
Product classification
| Product Type | Hoisting Grip Anchor |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Cable Runs, quantity | 2 |
| Mounting | Angle 60°, 406.4 mm (16 in) | Angle 90°, 304.8 mm (12 in) | Round member |
Dimensions
| Length | 1117.600 mm | 44 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Attachment kits |
| Packaging quantity | 1 |
| Weight, net | 108.1 kg | 238.319 lb |
Product classification
| Product Type | Hoisting Grip Anchor |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Cable Runs, quantity | 2 |
| Mounting | Angle 60°, 406.4 mm (16 in) | Angle 90°, 304.8 mm (12 in) | Round member |
Dimensions
| Length | 1117.600 mm | 44 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Attachment kits |
| Packaging quantity | 1 |
| Weight, net | 108.1 kg | 238.319 lb |
Documentation & downloads
Assembly drawing
Product specification
Assembly drawing
Product compliance documentation
Product specification
